Description

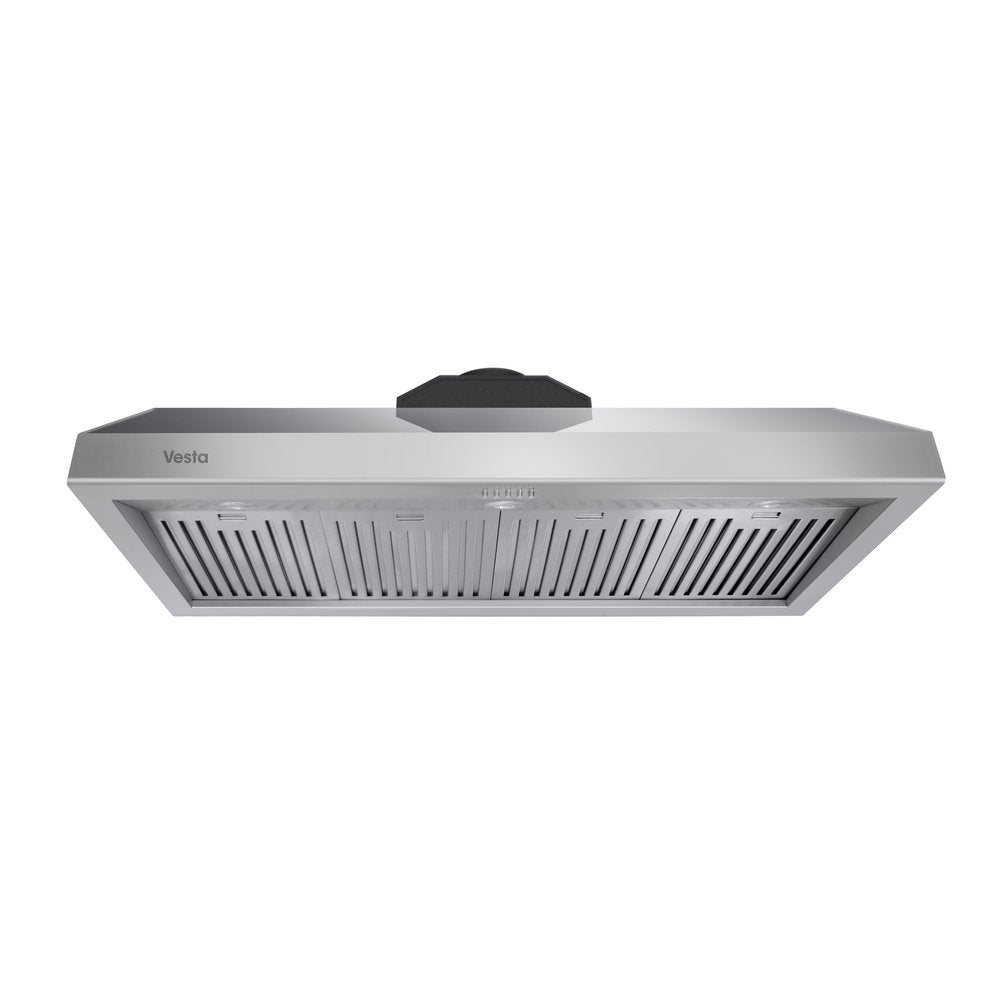

Vesta Barcelona 48" Under-Cabinet Range Hood delivers 1,000 CFM of ventilation through dual AC axial fan motors in a Silver stainless steel under-cabinet body. Three fan speeds are controlled via mechanical push buttons. Two dishwasher-safe baffle filters provide efficient grease capture, and three 2W LED lights illuminate your cooktop. An 8" round top vent handles high-volume ducting, and an optional stainless steel chimney is available separately. Oil tray included for easy maintenance. cETL certified, backed by a 2-year parts and labor warranty and a lifetime motor warranty.
Key Features
-
1,000 CFM Dual AC Axial Motors: Two AC axial fan motors deliver 1,000 CFM of powerful suction, ideal for high-output 48" cooktops and professional-style cooking
-
2 Dishwasher-Safe Baffle Filters: Two detachable baffle filters provide efficient grease capture and are fully washable and dishwasher-friendly
-
3 LED Cooktop Lights: Three 2W LED lights provide bright, energy-efficient illumination over your cooktop
-
8" Round Top Vent: Large 8" round exhaust configuration handles the high airflow demands of a 1,000 CFM system
-

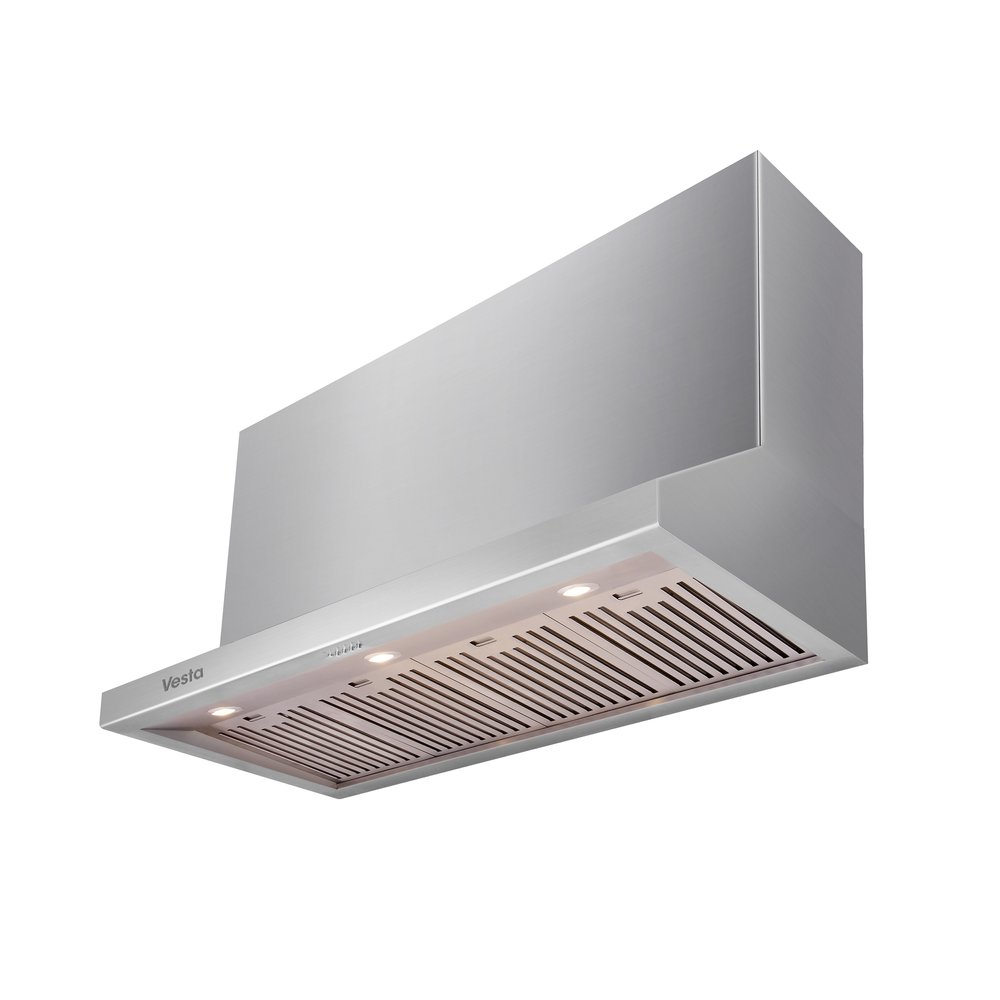

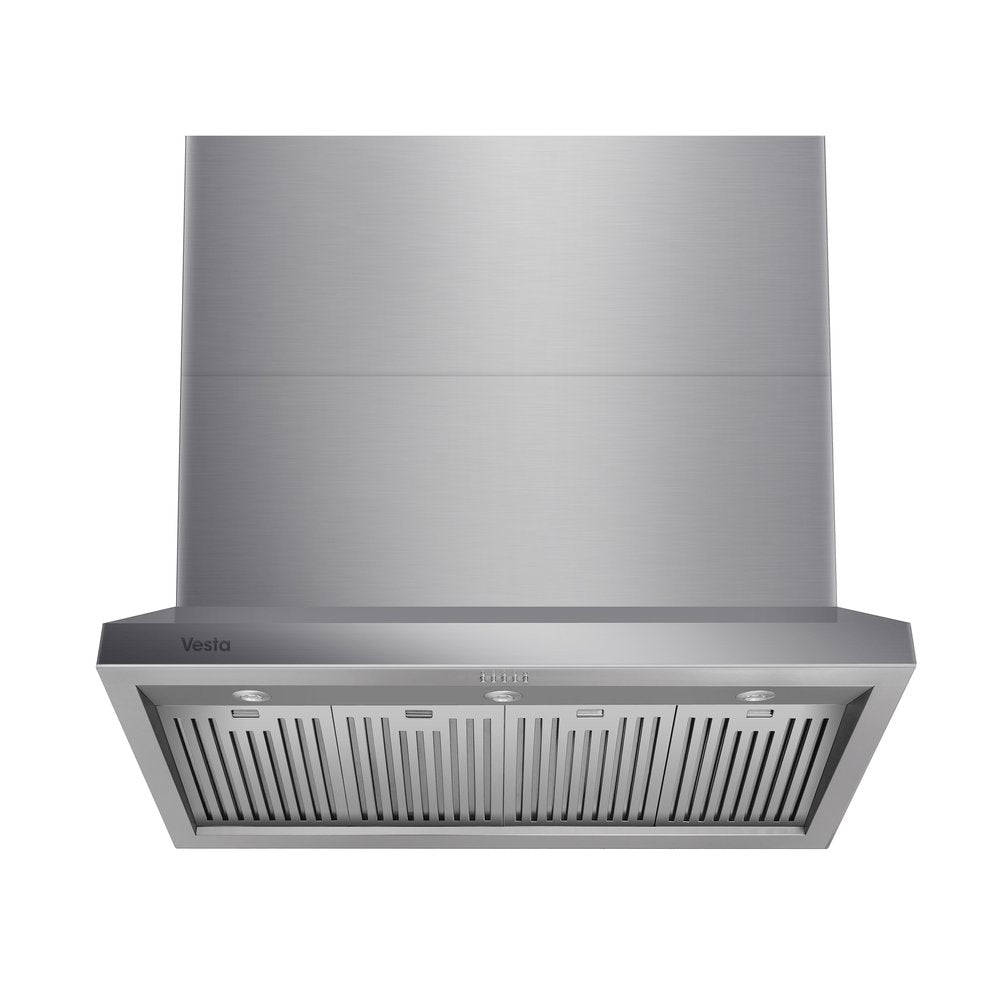

Optional Stainless Steel Chimney: A matching stainless steel chimney (48" × 12" × 12"–24") is available separately for a complete wall-mount look
-
Under-Cabinet Installation: Mounts directly under a cabinet for a clean, space-saving installation
-
Oil Tray: Collects grease runoff for easy maintenance
-
Stainless Steel Body: Seamless Silver stainless steel construction is easy to wipe clean
-
cETL Certified: Meets strict electrical safety standards, with a 2-year parts and labor warranty and lifetime motor warranty
Technical Information
-
Model Number: VRH-BARCELONA-48SS
-
Nominal Width: 48"
-
Hood Dimensions (W×D×H): 48" × 22" × 11"
-
Chimney Dimensions (W×D×H): 48" × 12" × (12" – 24") (optional)
-
Body Material: Stainless Steel
-
Color/Finish: Silver
-
Installation Type: Under Cabinet
-
Ducting: Ducted
-
Vent Size: 8" (Top, Round)
-
Electrical Requirements: 120V / 60Hz
-
Number of Motors: 2
-
Motor Type: AC
-
Maximum Airflow: 1,000 CFM
-
Fan Speed Levels: 3
-
Fan Type: Axial Fan
-
Filter Type: Baffle Filter (x2), Washable
-
Lighting: LED, 2W, Proprietary Base (x3)
-
Control Type: Mechanical Buttons
-
Handheld Remote: No
-
Oil Tray: Yes
-
Delayed Shut-Off: No
-
Certification: cETL
-
Warranty (Parts and Labor): 2 Years
-
Warranty (Motor): Lifetime
-
UPC: 675487201983
Manual & Safety Instructions
Reference Codes
-
2 Years Free SKU: VRH-BARCELONA-48SS
-
3 Year +$72 SKU: VRH-BARCELONA-48SS-3YW
-
4 Year +$168 SKU: VRH-BARCELONA-48SS-4YW
-
5 Year +$312 SKU: VRH-BARCELONA-48SS-5YW
