Description

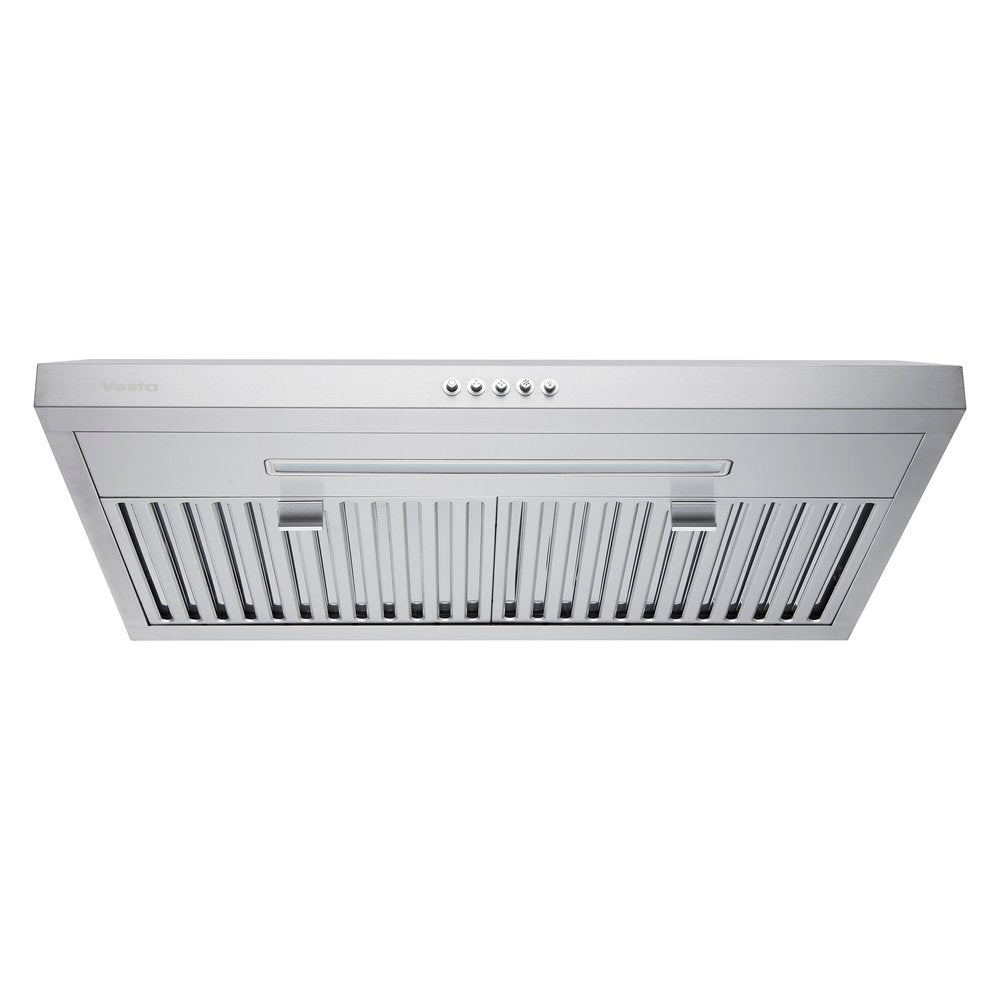

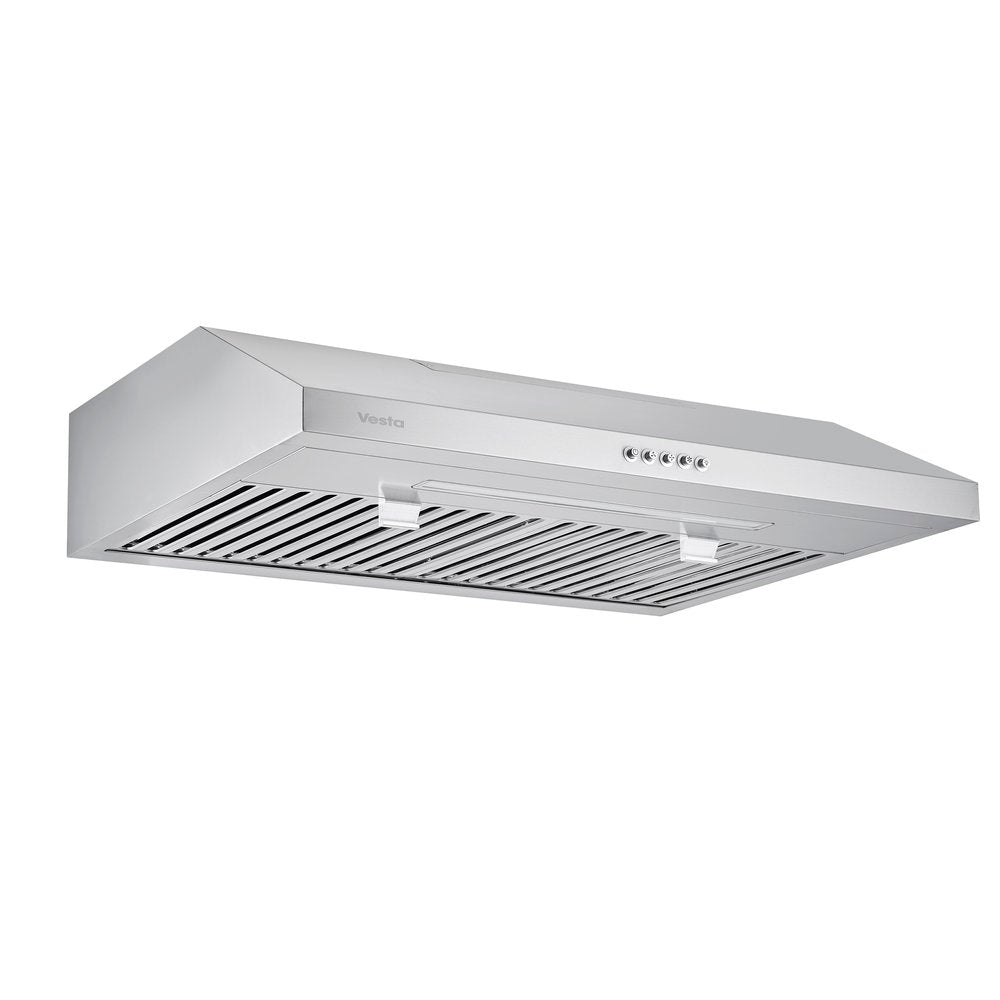

Vesta Charlotte 30" Under-Cabinet Range Hood delivers 500 CFM of ventilation through a single 125W AC axial fan motor in a lightweight Silver stainless steel under-cabinet body weighing just 9.13 kg. Three fan speeds are controlled via mechanical push buttons. Two dishwasher-safe baffle filters handle grease capture, and an elongated LED light bar provides bright, even illumination across the full cooktop surface. The Charlotte supports both ducted and ductless operation — add an optional charcoal filter (sold separately) to convert to ductless mode. A 10"×3.25" rectangular vent connects via top or back exhaust for flexible installation. cETL certified, backed by a 2-year parts and labor warranty and a lifetime motor warranty.
Key Features
-

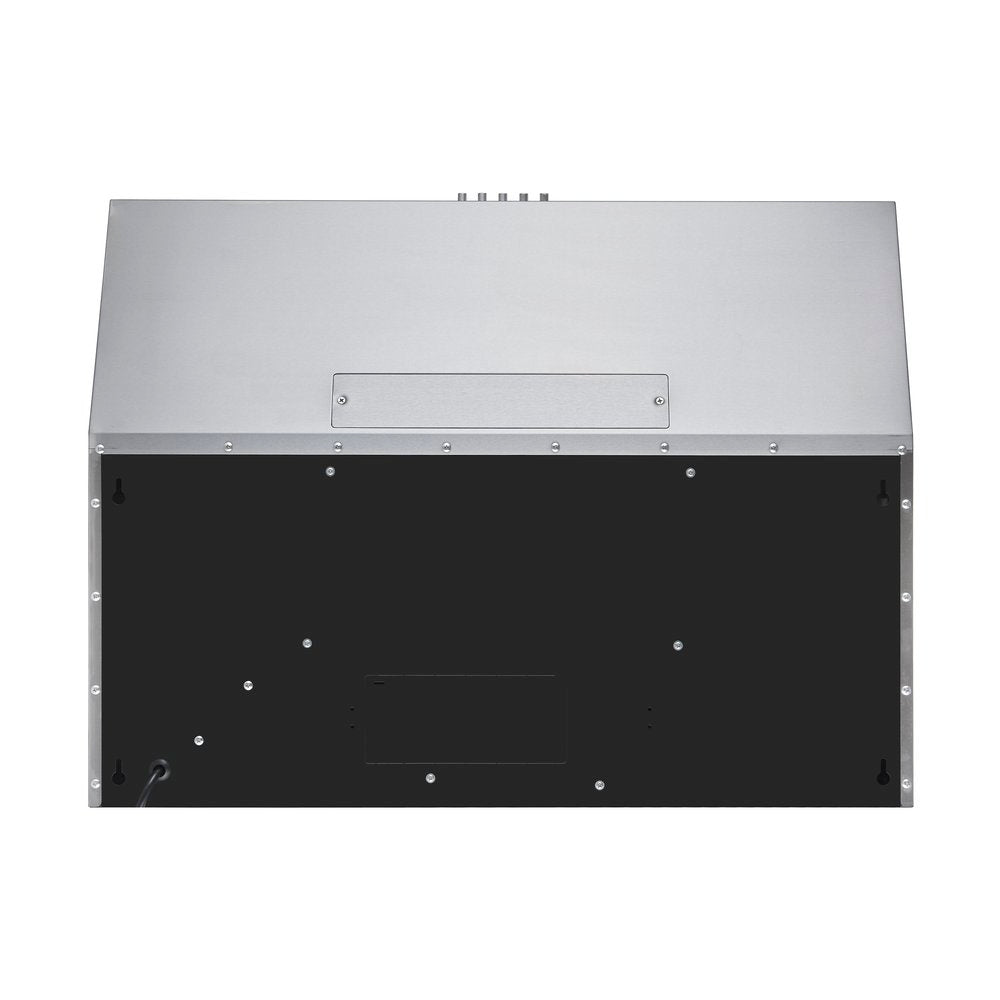

Ducted and Ductless Operation: Easily convert from ducted to ductless by adding an optional charcoal filter (sold separately), making the Charlotte adaptable to kitchens without external duct access
-

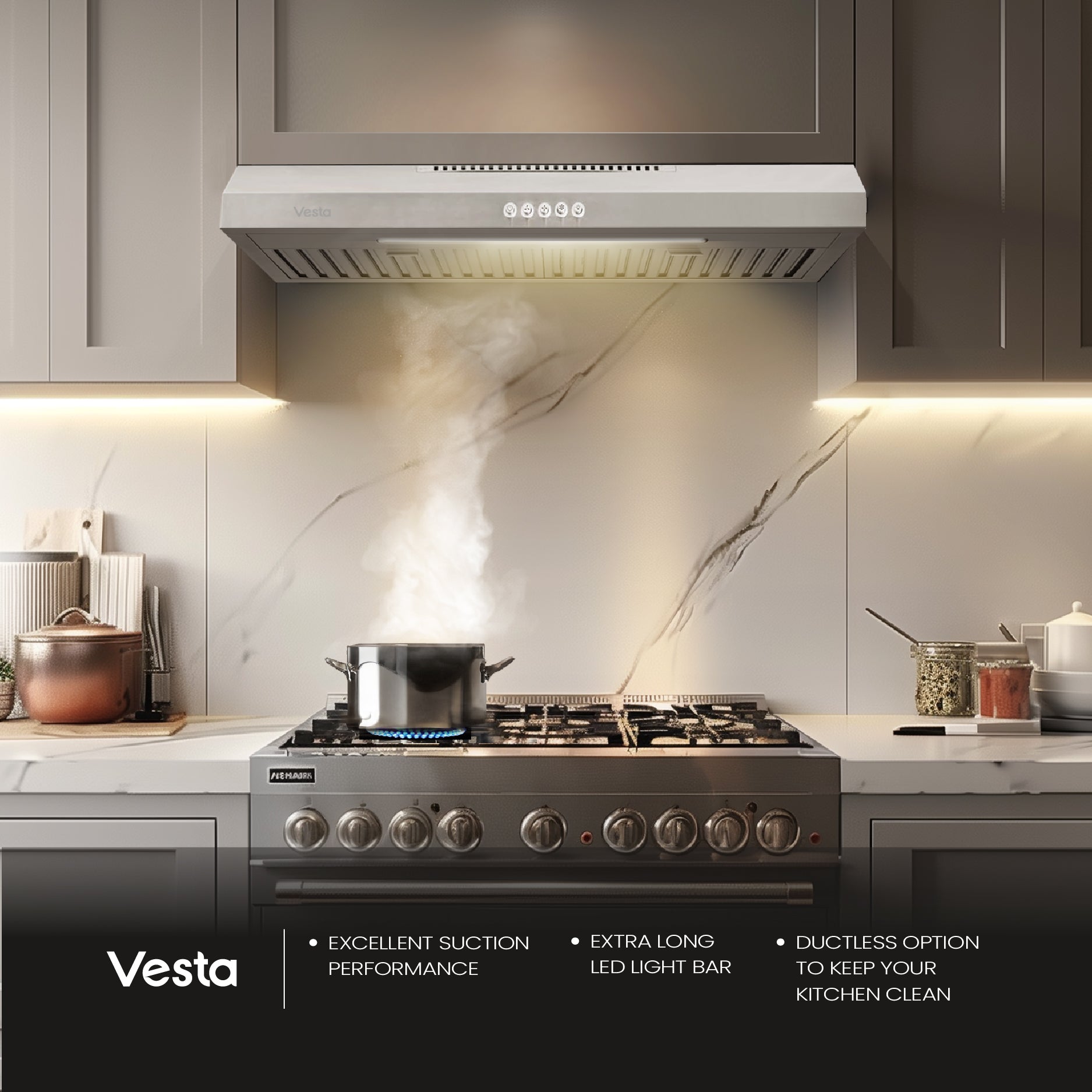

500 CFM AC Axial Motor: A single 125W AC axial fan motor delivers 500 CFM of suction to efficiently remove smoke, steam, and cooking odors
-

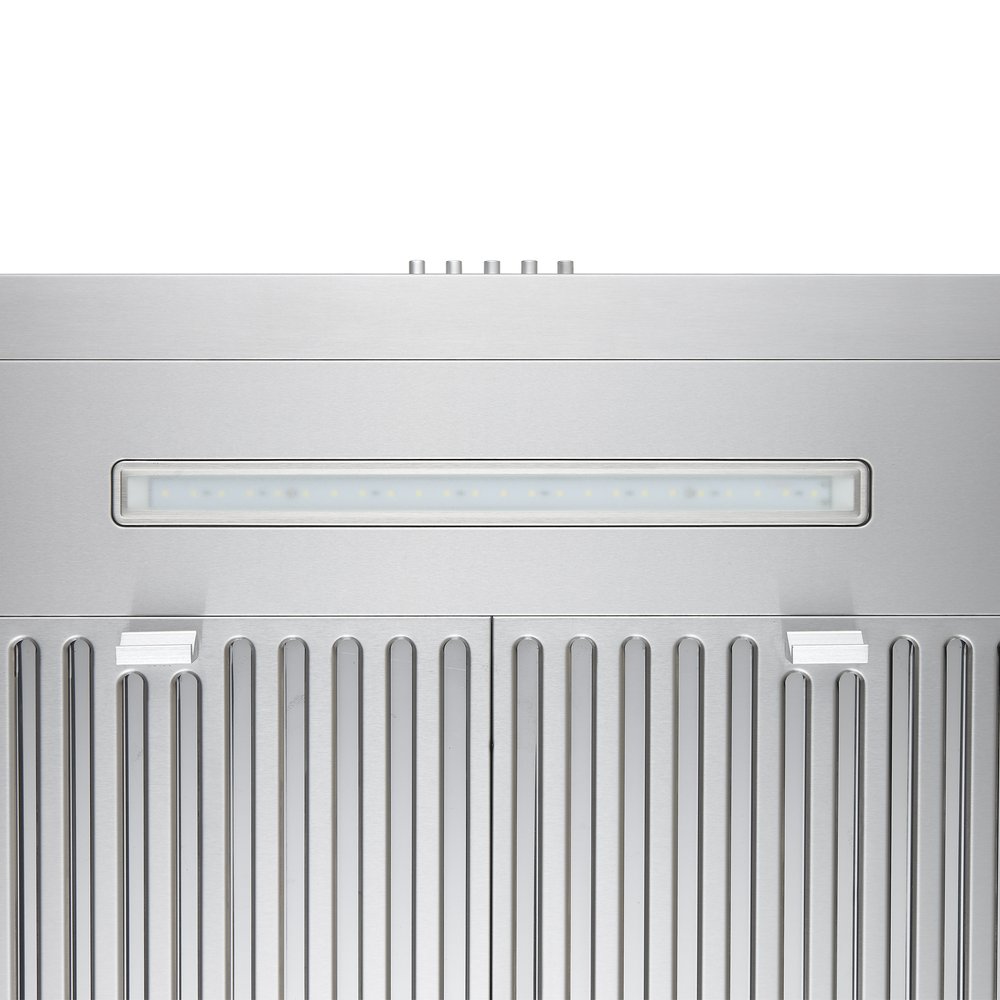

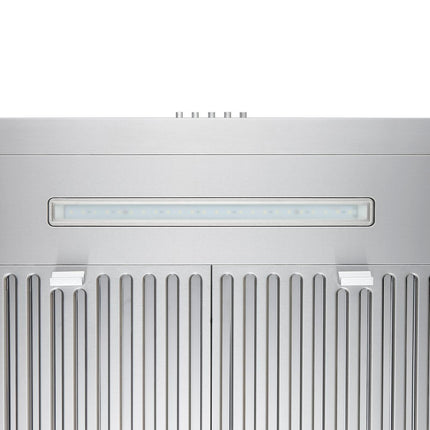

Elongated LED Light Bar: Two 5W proprietary LED lights form an extended light bar that brightens the full cooking area for added visibility and convenience
-

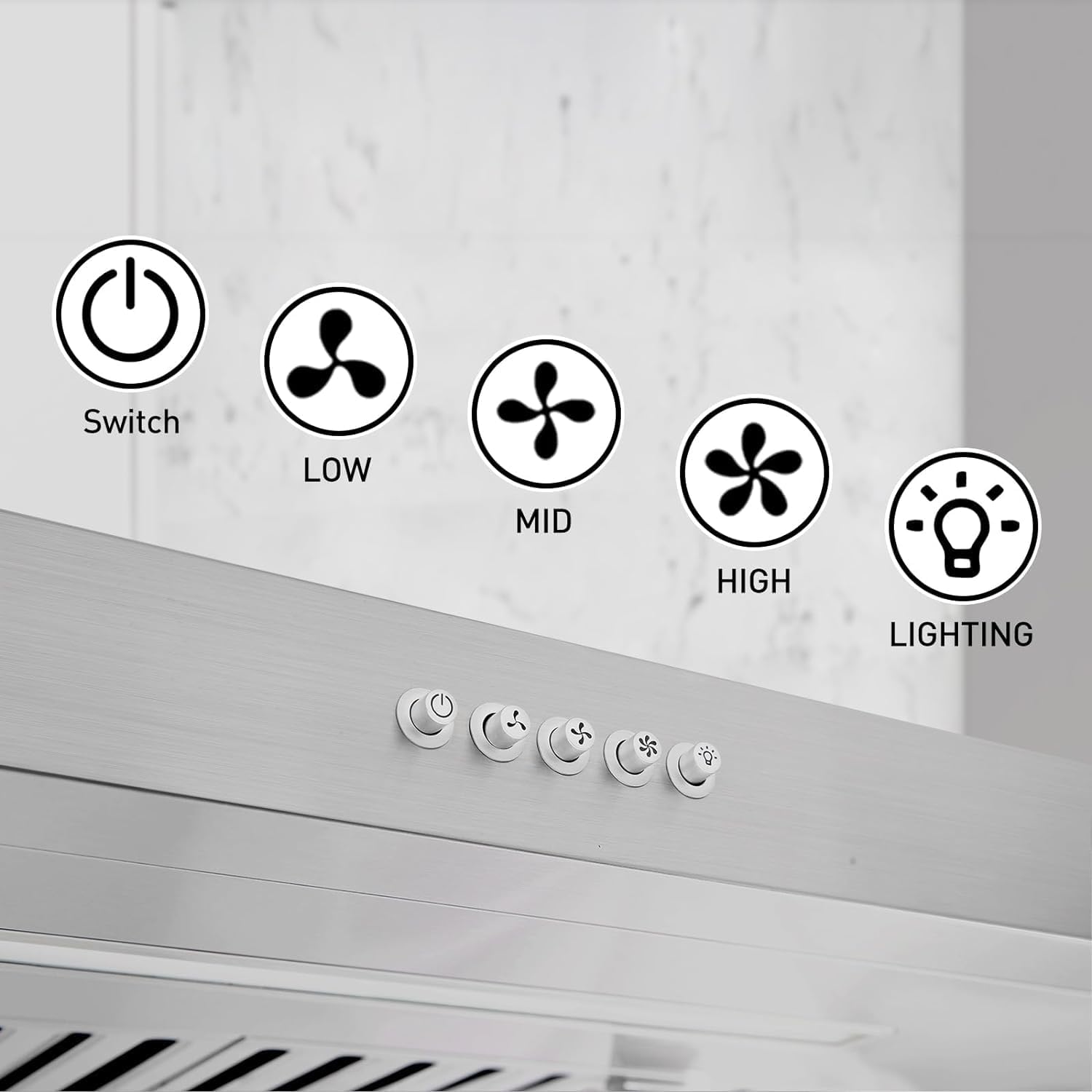

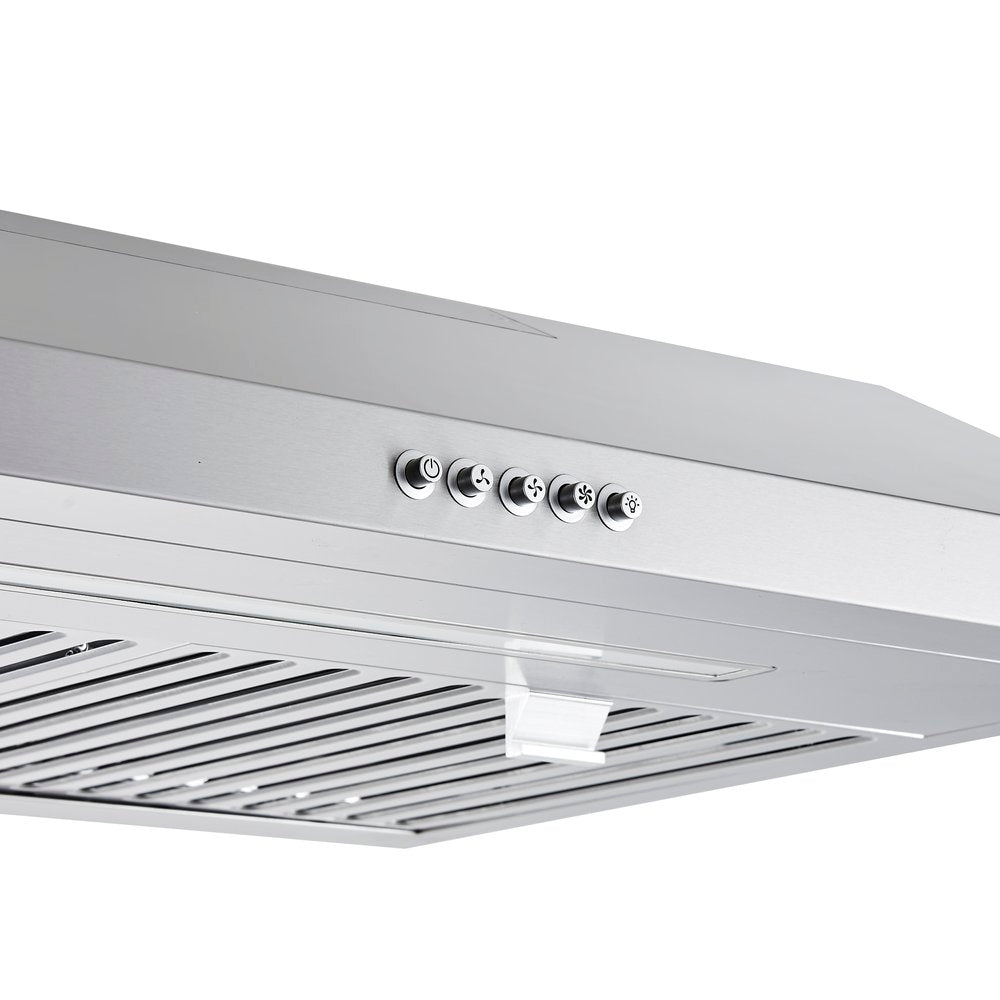

3 Fan Speeds via Mechanical Buttons: Simple mechanical push buttons provide quick access to 3 fan speed levels, with a maximum noise level of just 64 dB
-

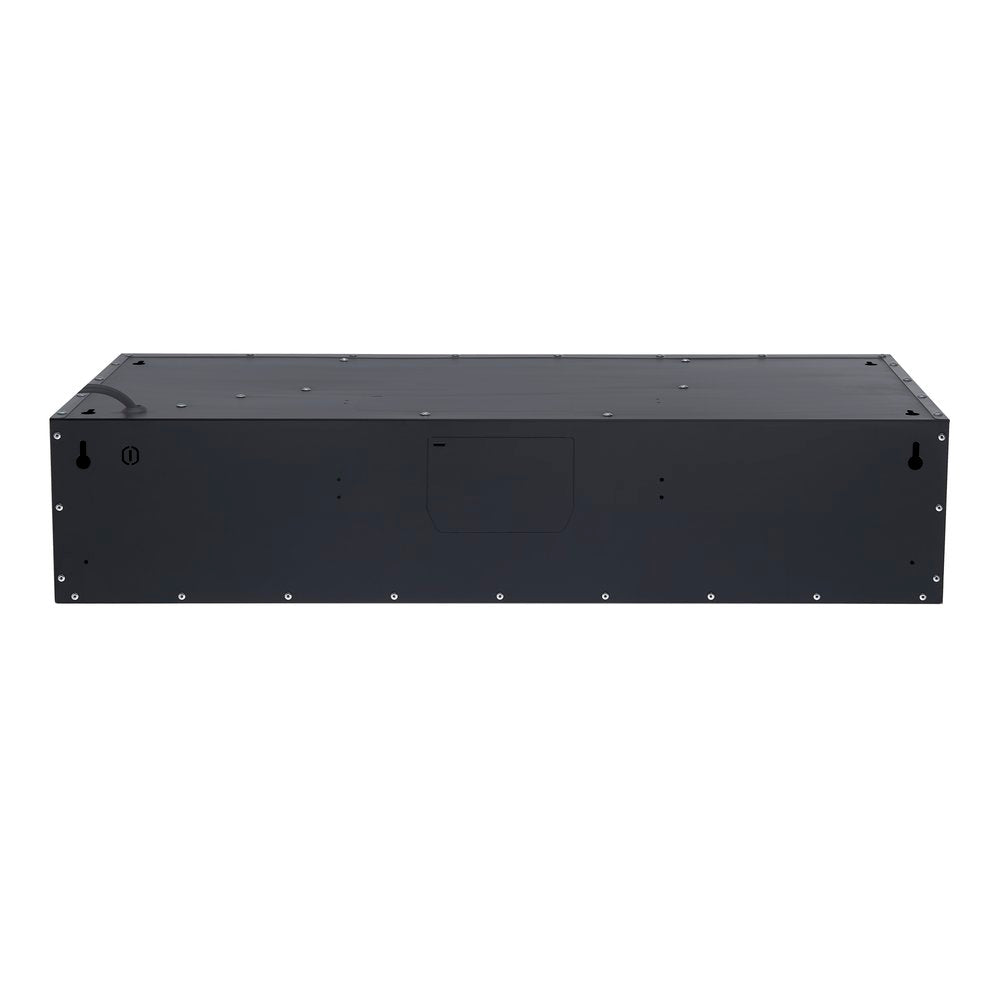

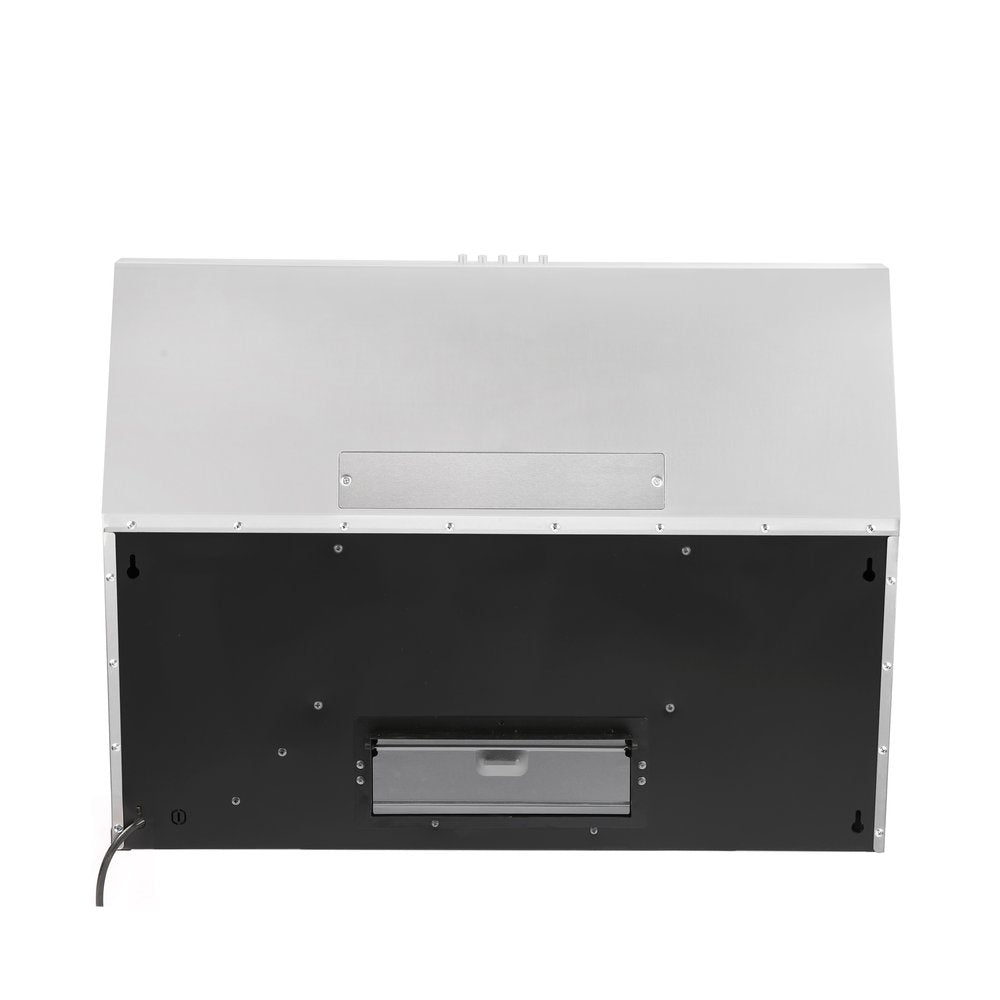

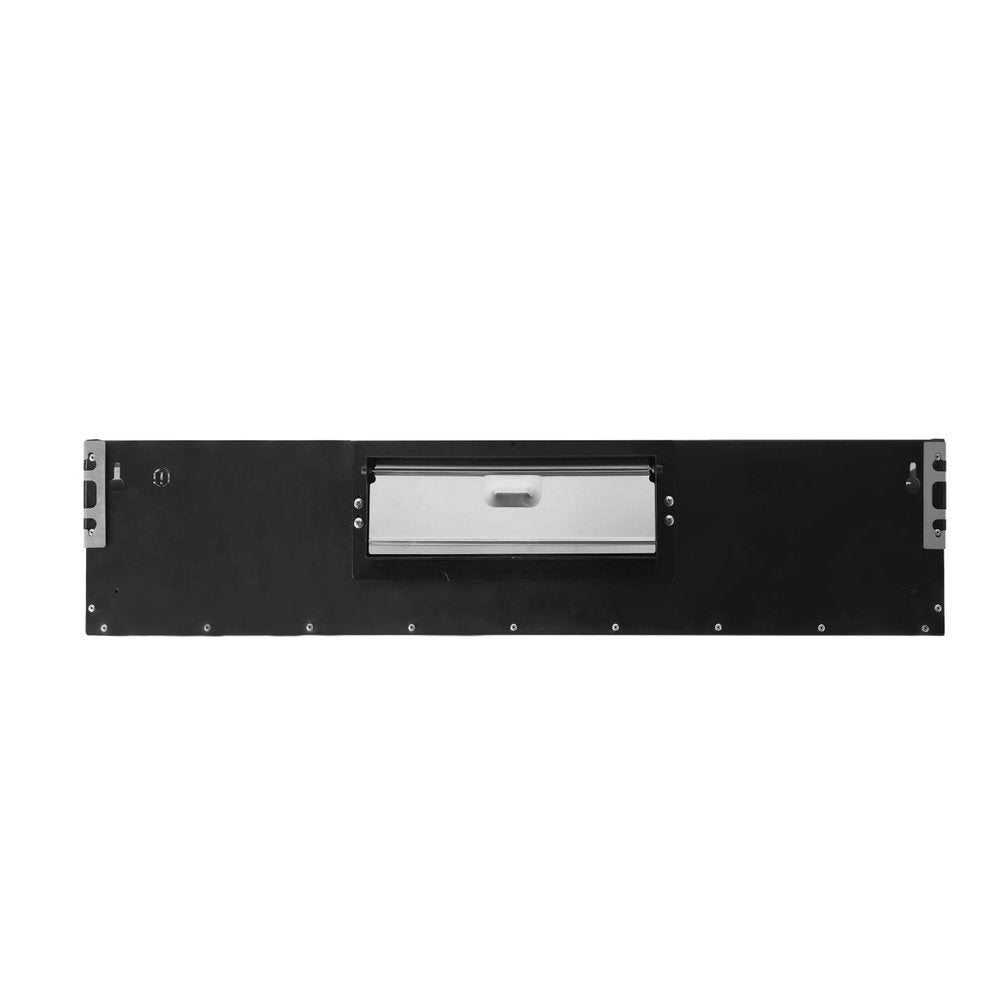

Flexible Rectangular Vent: A 10"×3.25" rectangular vent connects via top or back exhaust to adapt to different kitchen layouts
-

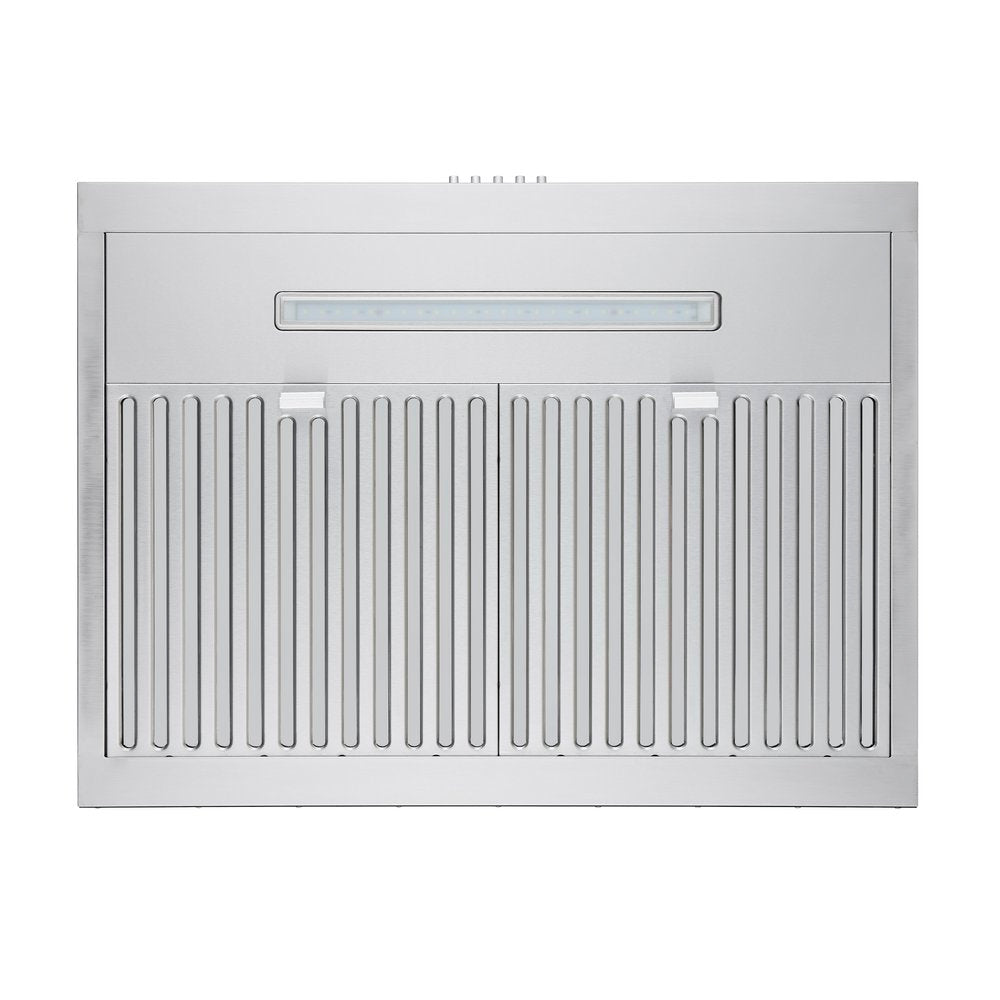

2 Dishwasher-Safe Baffle Filters: Detachable baffle filters capture grease efficiently and are fully washable and dishwasher-friendly
-
Lightweight Design: At just 9.13 kg, the Charlotte can be installed by one person without additional assistance
-
Stainless Steel Body: Seamless Silver stainless steel construction is easy to wipe clean
-
cETL Certified: Meets strict electrical safety standards, with a 2-year parts and labor warranty and lifetime motor warranty
Technical Information
-
Model Number: VRH-CHARLOTTE-30SS
-
Nominal Width: 30"
-

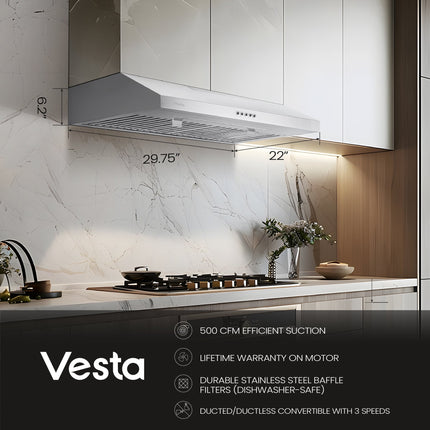

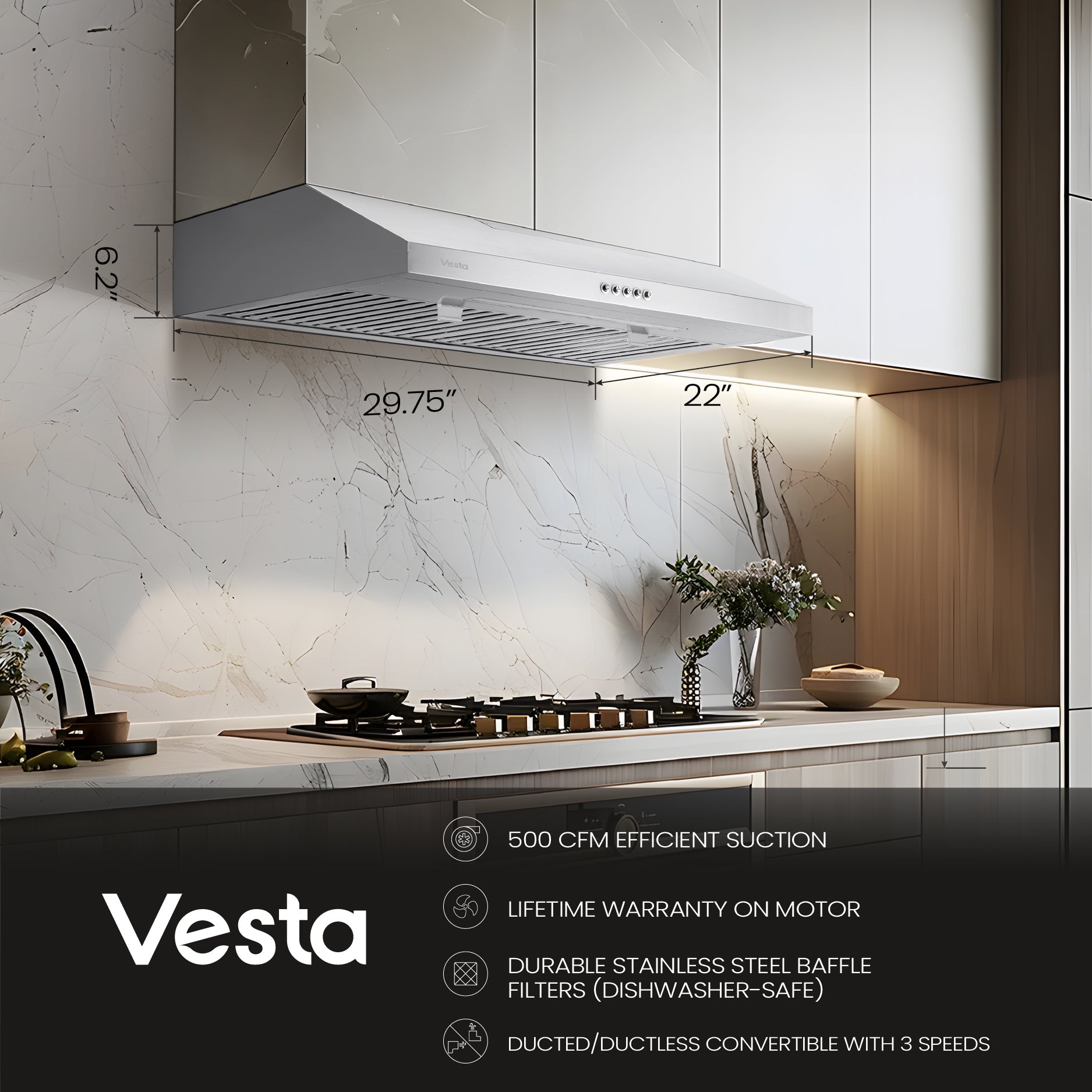

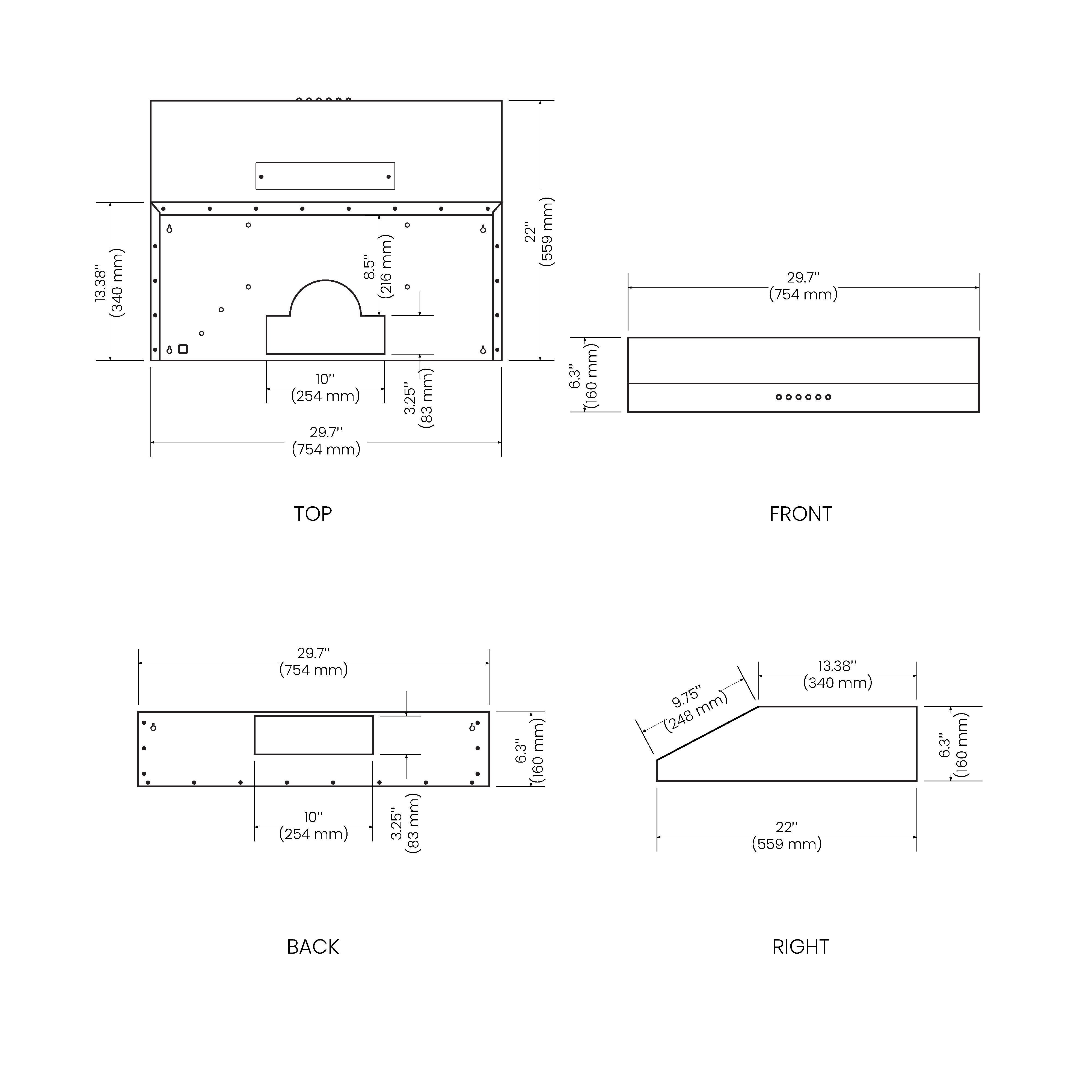

Hood Dimensions (W×D×H): 29.7" × 22" × 6.3"
-
Net Weight: 9.13 kg
-
Body Material: Stainless Steel
-
Color/Finish: Silver
-
Installation Type: Under Cabinet
-
Ducting: Ducted (Ductless with optional charcoal filter)
-
Vent Size: 10" × 3.25" (Top Rectangular or Back Rectangular)
-
Electrical Requirements: 120V / 60Hz
-
Number of Motors: 1
-
Motor Power: 125W
-
Motor Type: AC
-
Maximum Airflow: 500 CFM
-
Fan Speed Levels: 3
-

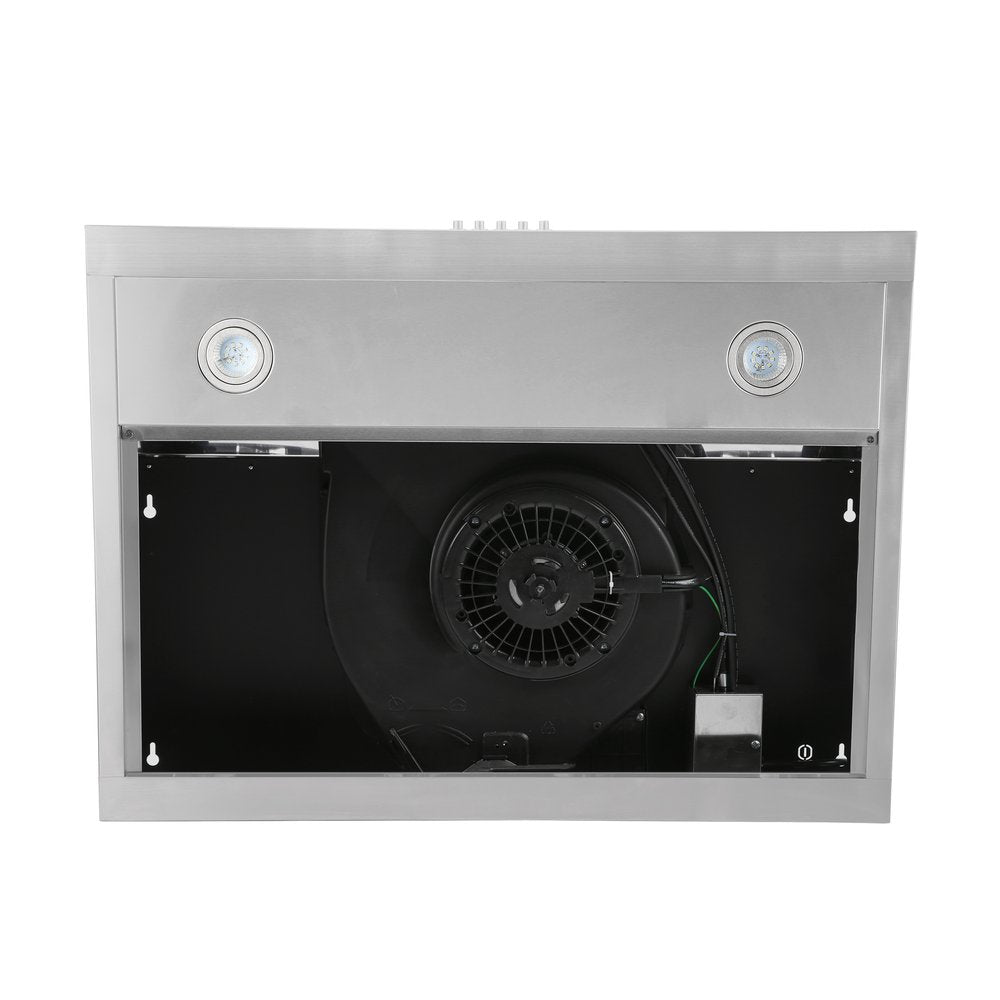

Fan Type: Axial Fan
-
Noise Level: 35 dB (min) / 64 dB (max)
-
Filter Type: Baffle Filter (x2), Washable
-

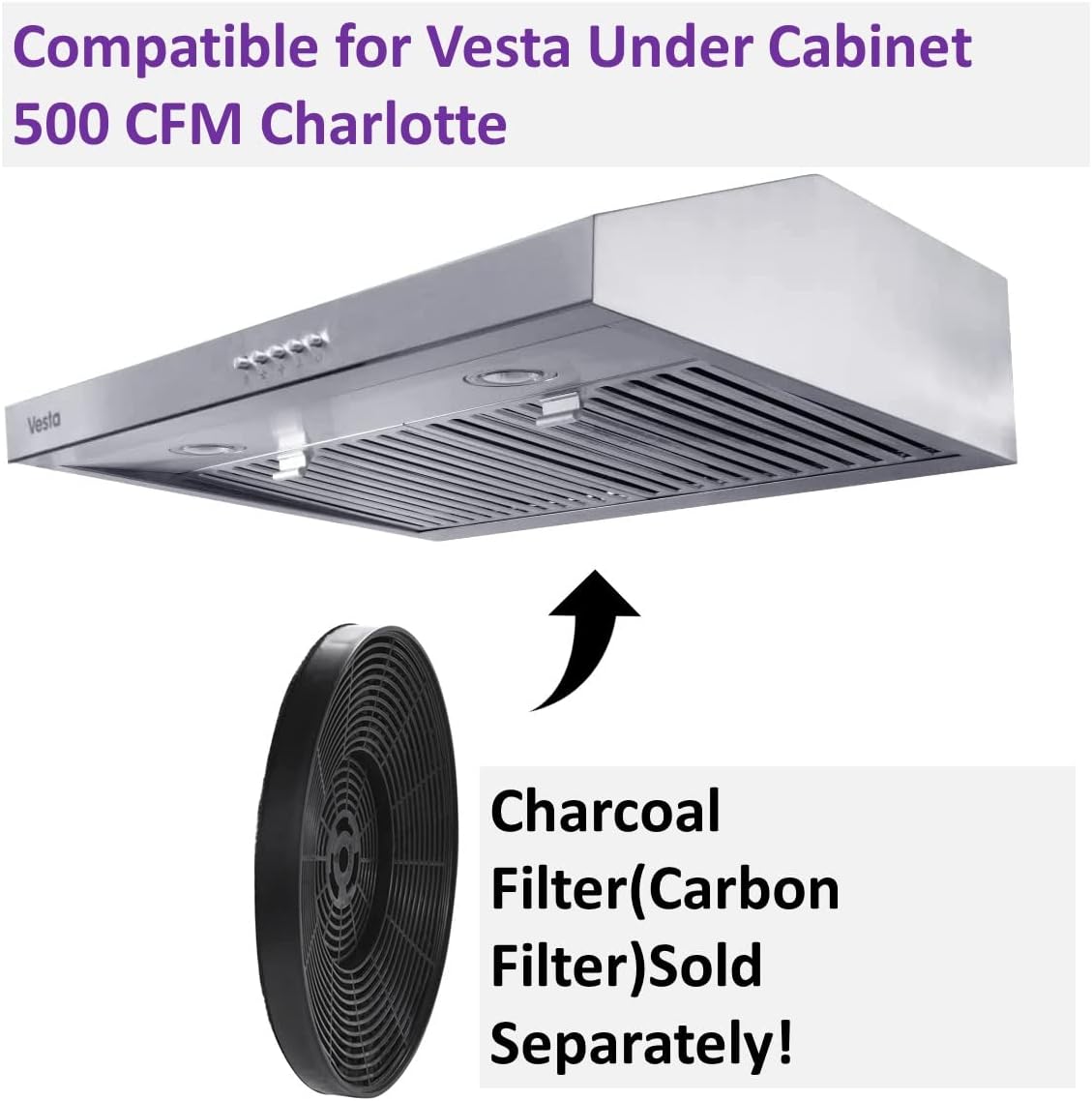

Optional Filter: Charcoal Filter (for ductless mode, sold separately)
-
Lighting: LED, 5W, Proprietary Base (x2)
-
Control Type: Mechanical Buttons
-
Handheld Remote: No
-
Oil Tray: No
-
Delayed Shut-Off: No
-
Certification: cETL
-
Warranty (Parts and Labor): 2 Years
-
Warranty (Motor): Lifetime
-
UPC: 675487201518
