Description

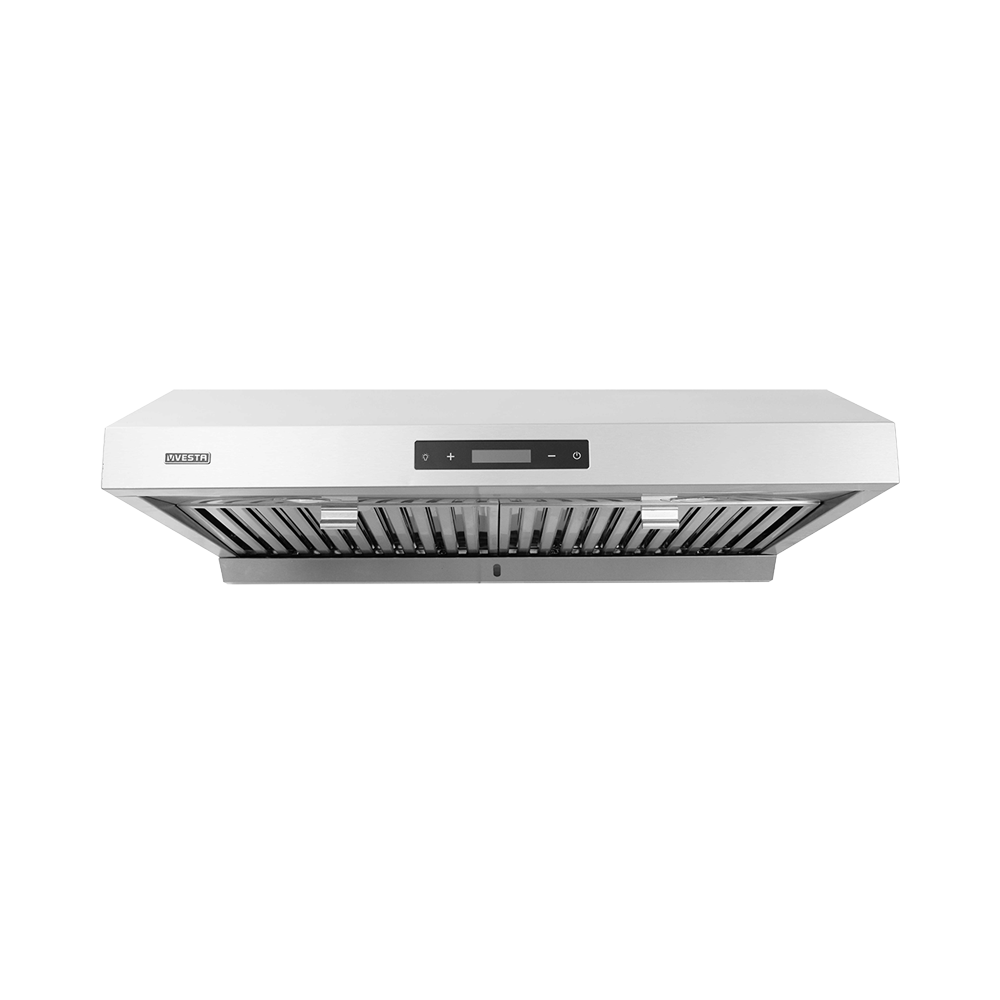

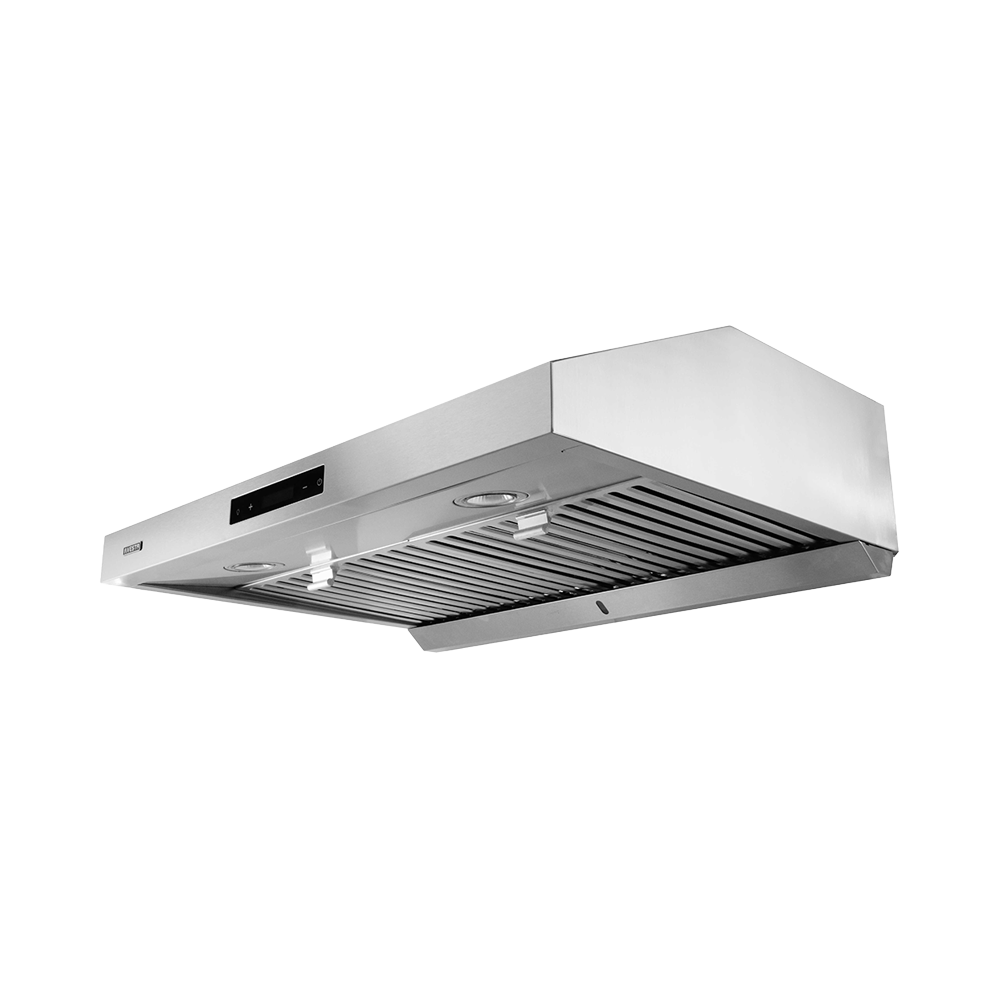

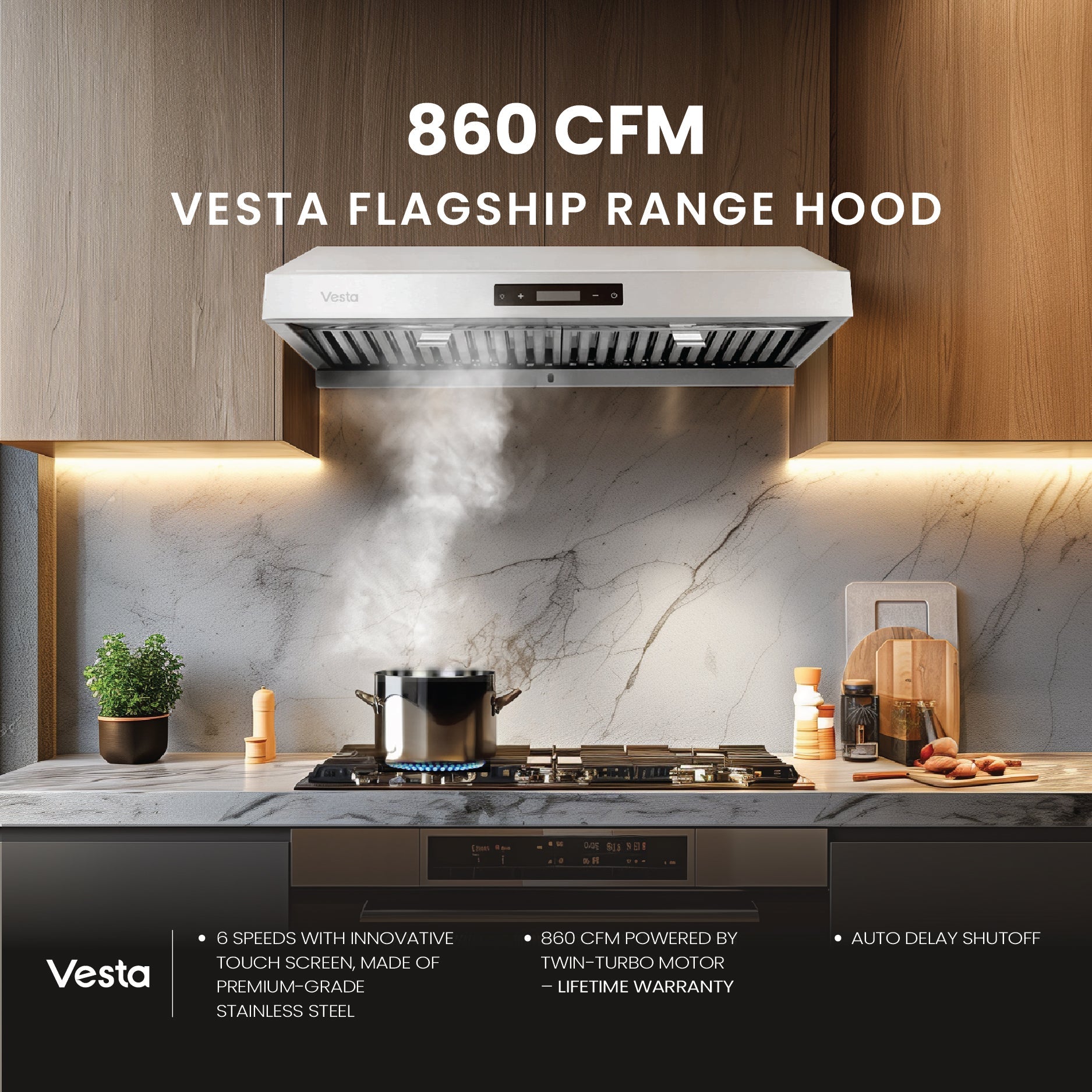

Vesta Atlanta 30" Under-Cabinet Range Hood delivers 860 CFM of ventilation through dual 130W AC axial fan motors in a Silver 430-grade stainless steel under-cabinet body. Six fan speeds are controlled via a touchscreen panel featuring a clock display and a filter cleaning reminder for effortless maintenance tracking. Two standard GU10 LED lights (3.5W each) illuminate your cooktop with easily replaceable bulbs. Three vent configurations (6" round top, 3.25"×10" rectangular top, or 3.25"×10" rectangular back) provide flexible installation options. Two dishwasher-safe baffle filters, an oil tray, and delayed shut-off complete the package. cETL certified, backed by a 2-year parts and labor warranty and a lifetime motor warranty.
Key Features
-
860 CFM Dual 130W AC Axial Motors: Two 130W AC axial fan motors deliver 860 CFM of powerful suction to efficiently remove smoke, steam, and cooking odors, with noise levels ranging from 35 dB to 60 dB
-

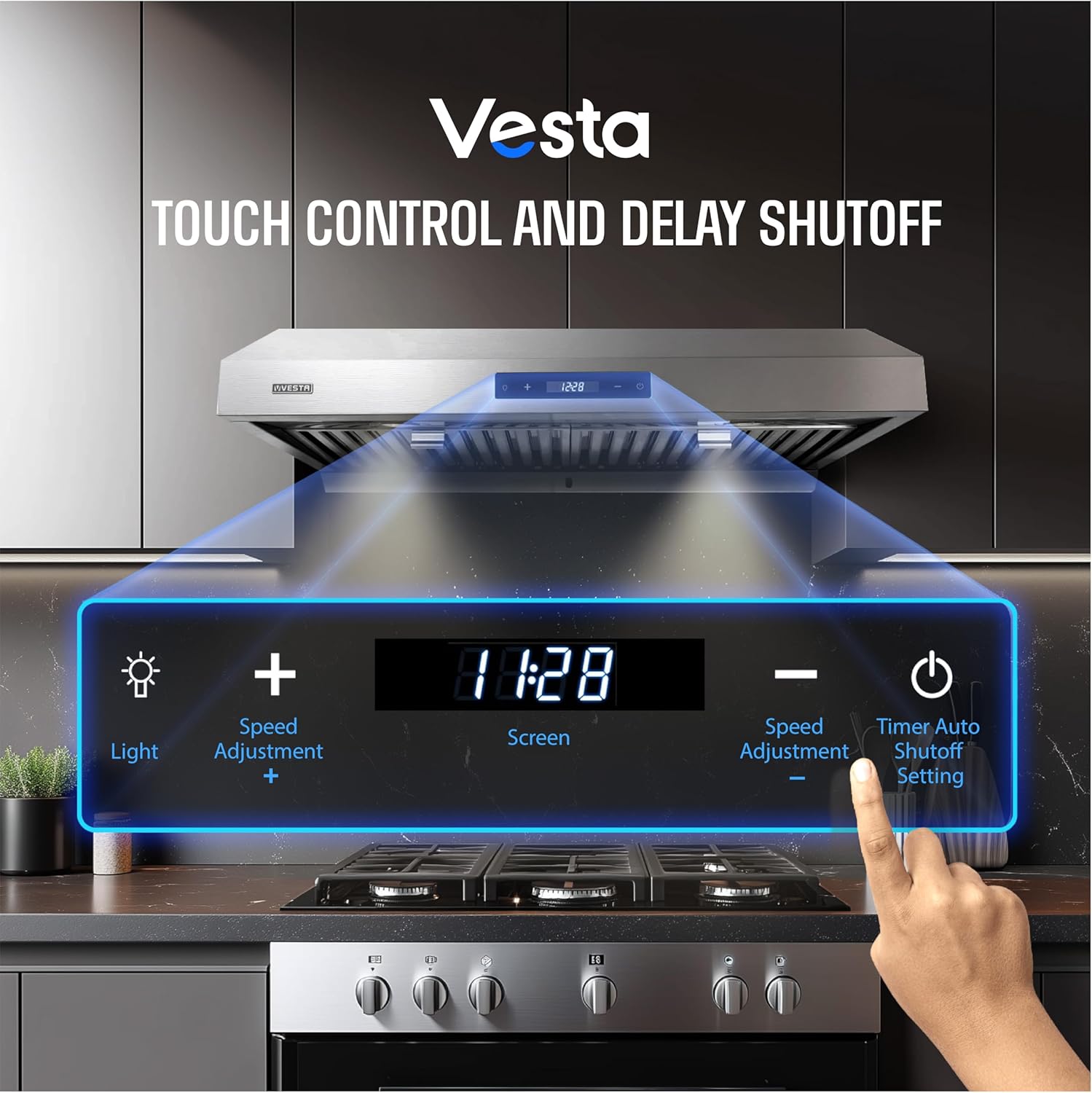

6-Speed Touchscreen with Clock and Filter Reminder: Intuitive touchscreen panel offers 6 fan speed levels, a built-in clock display, and a filter cleaning reminder to keep maintenance on schedule
-
2 GU10 LED Lights: Two 3.5W GU10 LED lights provide bright, energy-efficient illumination; standard GU10 base allows easy bulb replacement at any hardware store
-

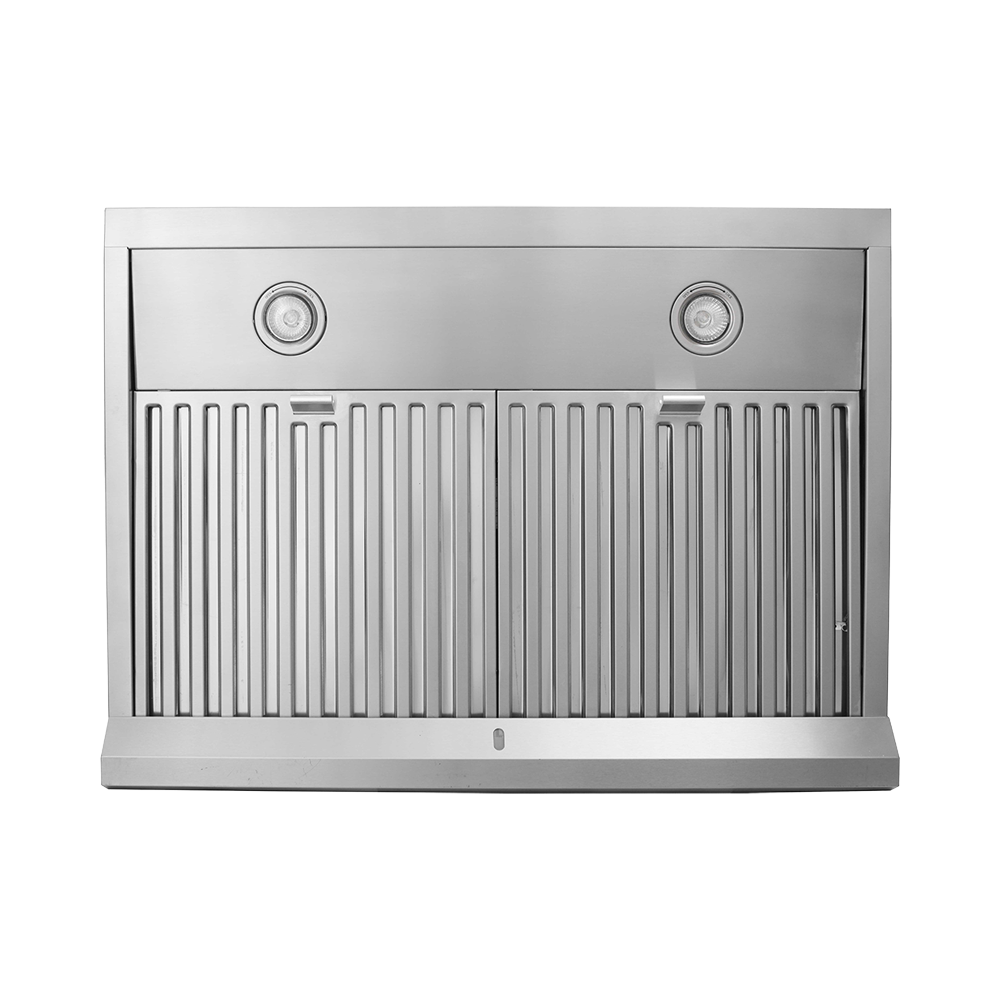

2 Dishwasher-Safe Baffle Filters: Two detachable baffle filters provide efficient grease capture and are fully washable and dishwasher-friendly
-

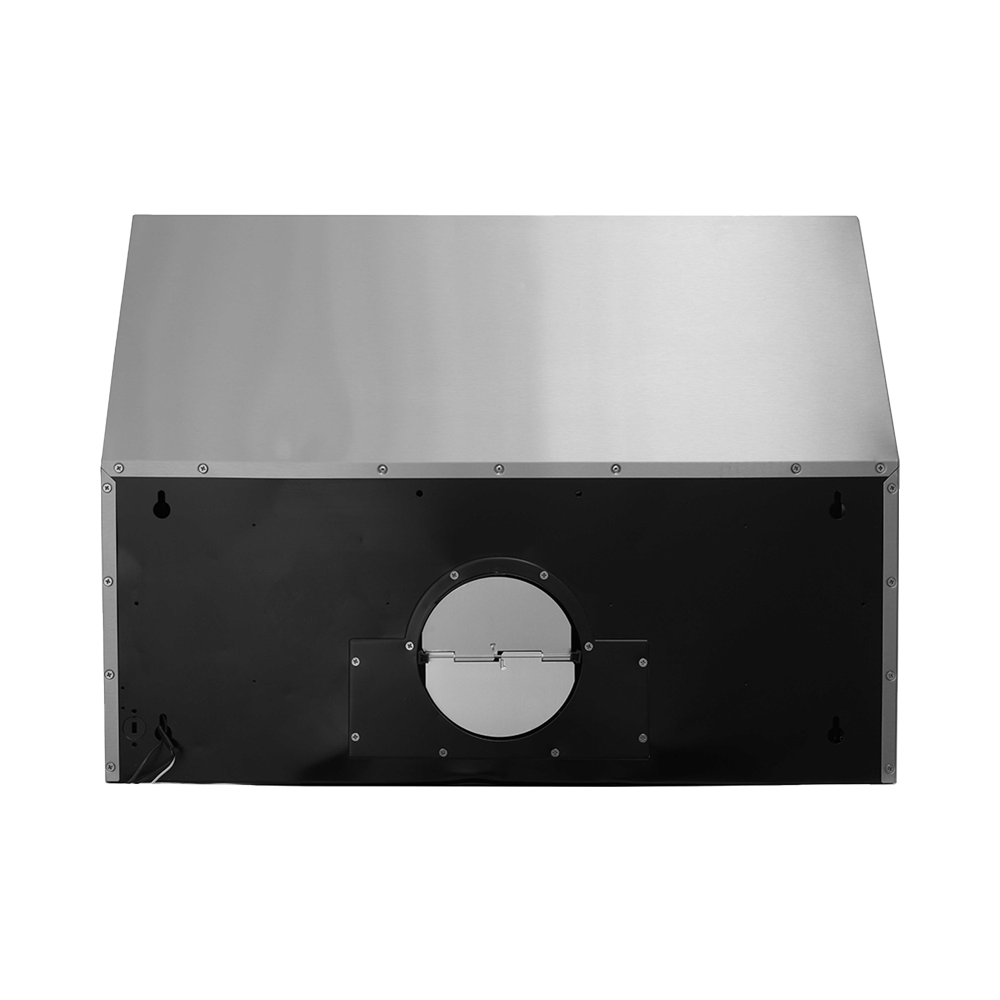

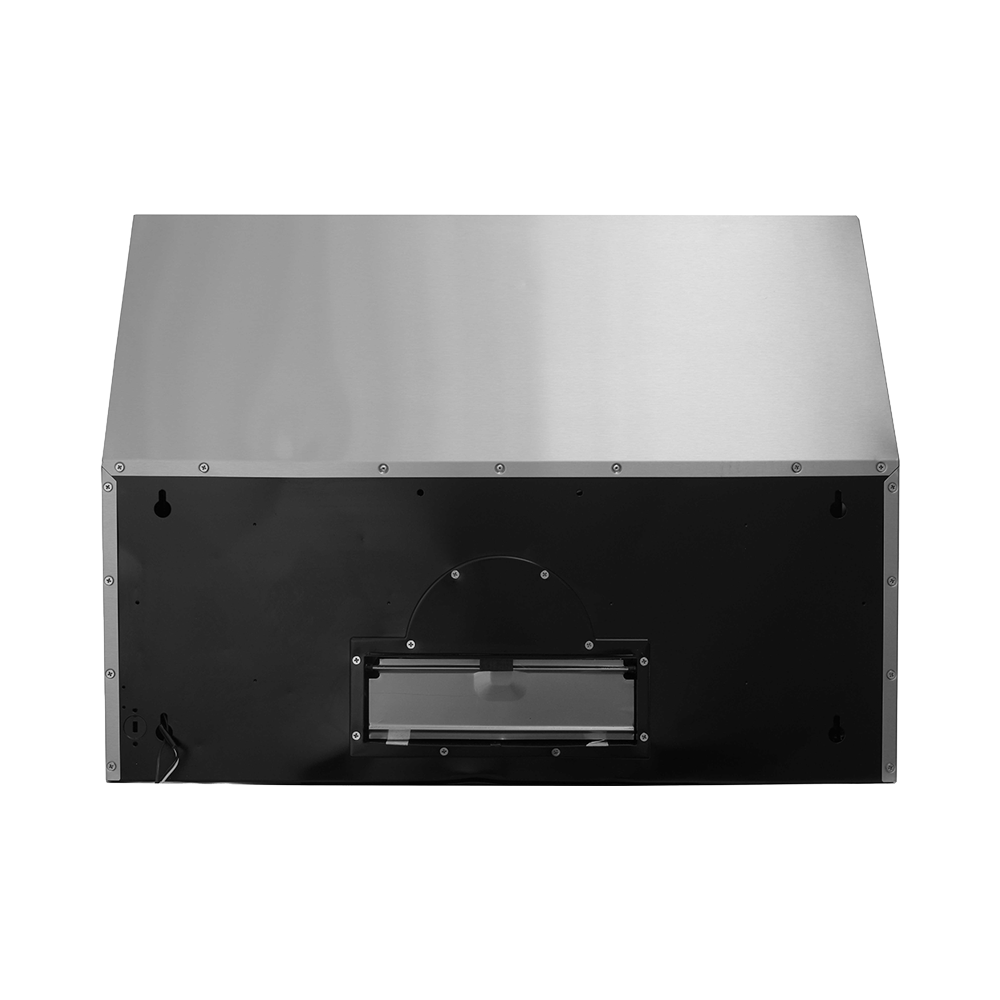

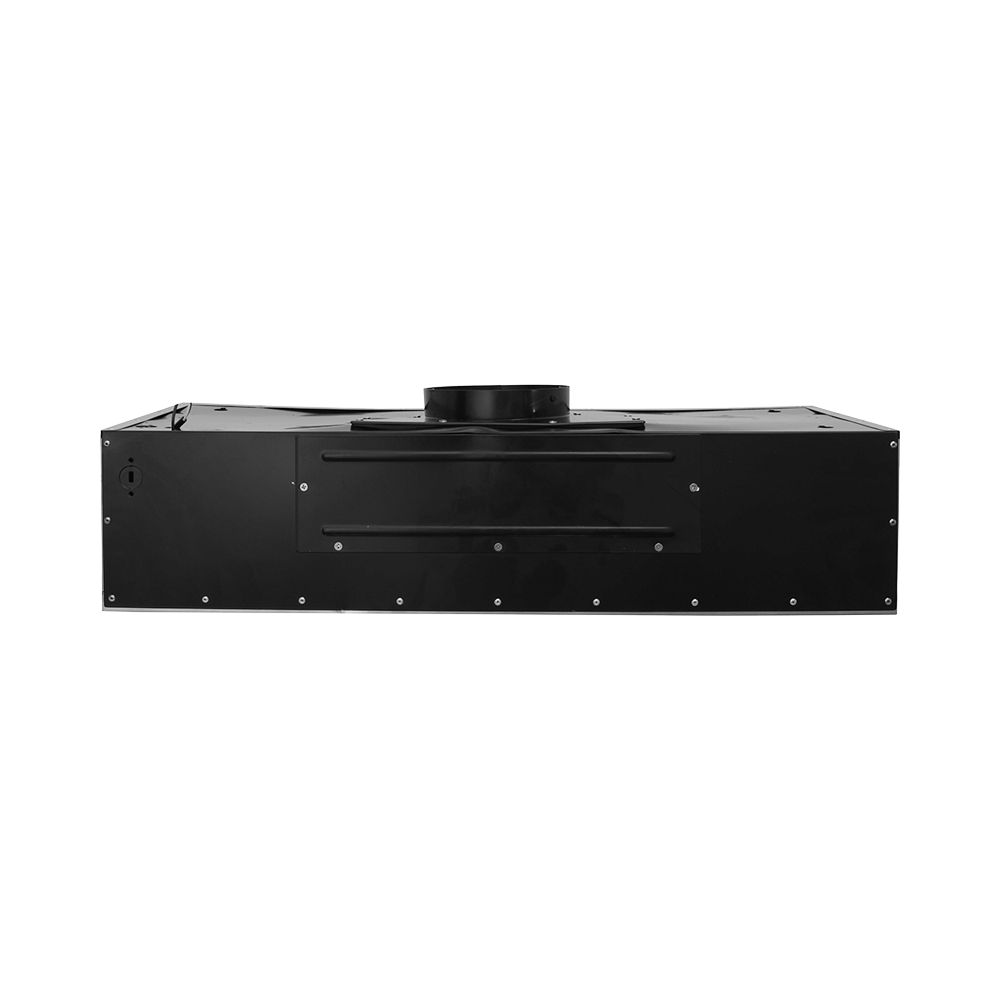

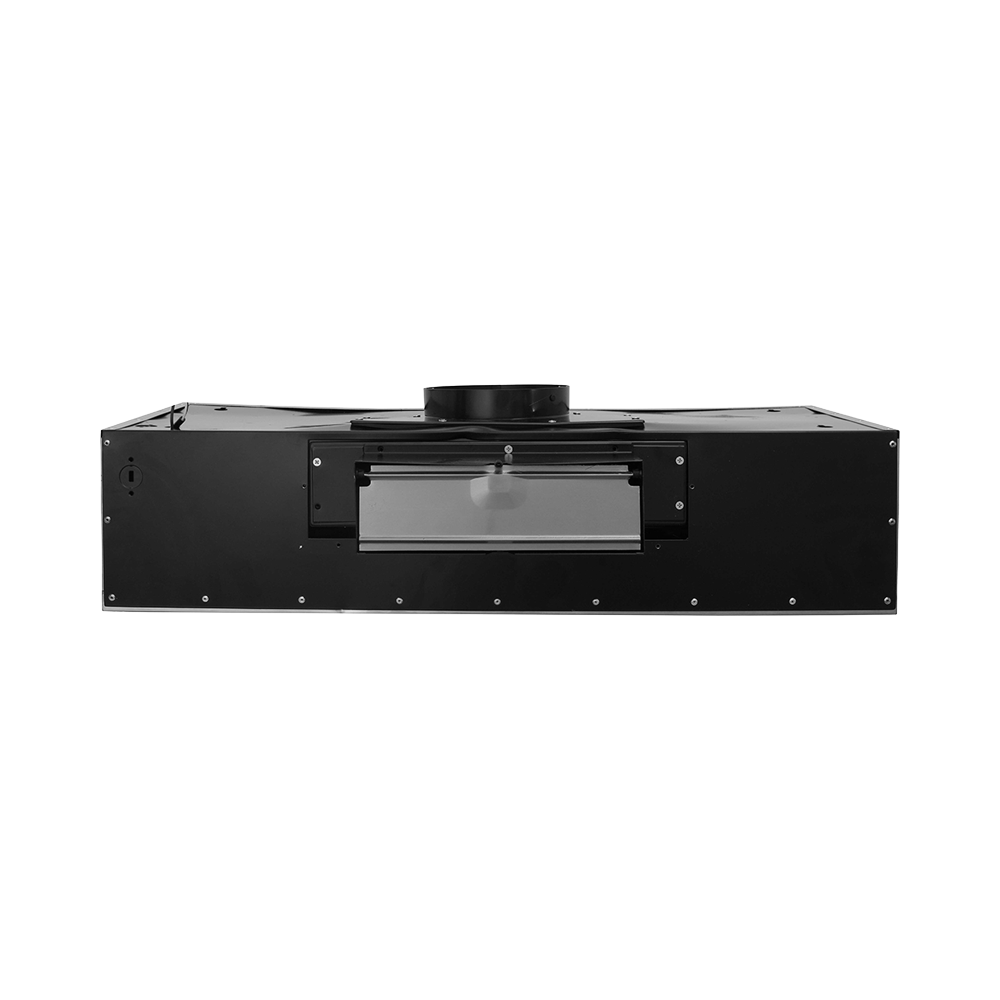

3 Vent Configuration Options: Compatible with a 6" round top vent, a 3.25"×10" rectangular top vent, or a 3.25"×10" rectangular back vent for maximum installation flexibility
-
Delayed Shut-Off: Automatically continues running after cooking to clear residual smoke and odors
-
Oil Tray: Collects grease runoff for easy maintenance
-
430-Grade Stainless Steel Body: Durable, corrosion-resistant Silver stainless steel construction is easy to wipe clean
-
cETL Certified: Meets strict electrical safety standards, with a 2-year parts and labor warranty and lifetime motor warranty
Technical Information
-
Model Number: VRH-ATLANTA-30SS
-
Nominal Width: 30"
-

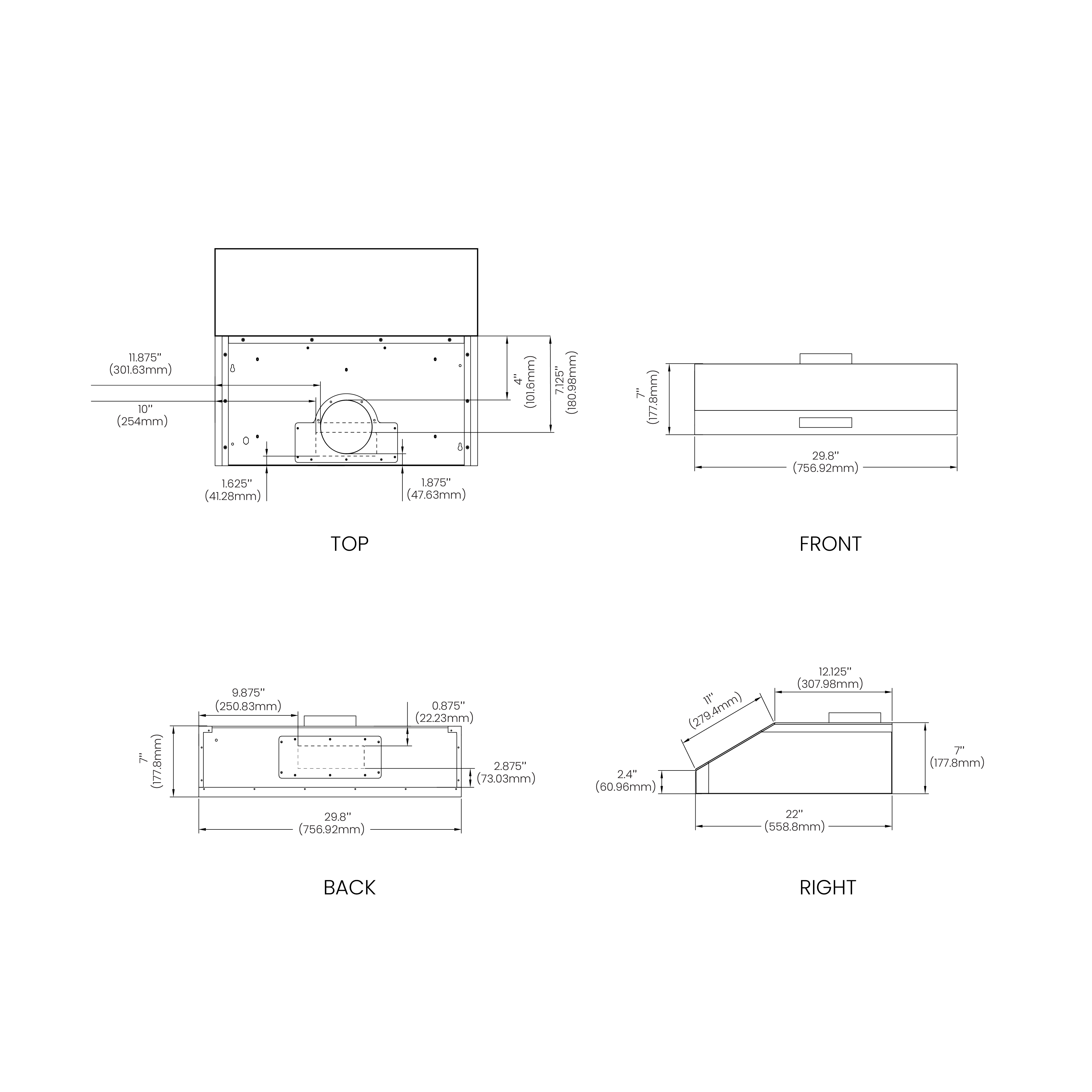

Hood Dimensions (W×D×H): 29.8" × 22" × 7"
-
Net Weight: 19.7 kg
-
Body Material: 430-Grade Stainless Steel
-
Color/Finish: Silver
-
Installation Type: Under Cabinet
-
Ducting: Ducted
-
Vent Options: 6" Round (Top), 3.25"×10" Rectangular (Top), 3.25"×10" Rectangular (Back)
-
Electrical Requirements: 120V / 60Hz
-
Number of Motors: 2
-
Motor Power: 130W
-
Motor Type: AC
-
Maximum Airflow: 860 CFM
-
Fan Speed Levels: 6
-
Fan Type: Axial Fan
-
Noise Level: 35 dB (min) / 60 dB (max)
-
Filter Type: Baffle Filter (x2), Washable
-
Lighting: LED, 3.5W, GU10 Base (x2)
-
Control Type: Touchscreen (with Clock Display and Filter Cleaning Reminder)
-
Handheld Remote: No
-
Delayed Shut-Off: Yes
-
Oil Tray: Yes
-
Certification: cETL
-
Warranty (Parts and Labor): 2 Years
-
Warranty (Motor): Lifetime
-
UPC: 675487200764
