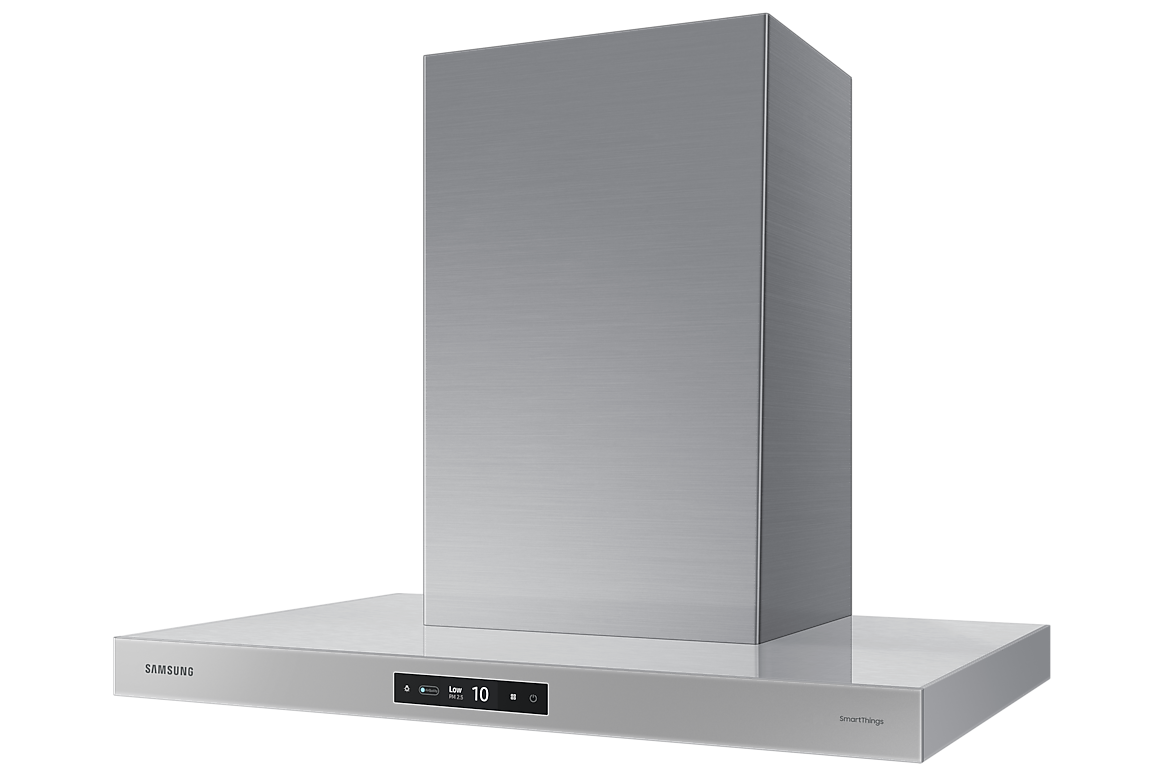

Description
630 CFM Power Ventilation System removes odours quickly. Triple Air Sensor automatically monitors the level of air pollution in your kitchen. Effortlessly monitor and adjust the settings using your voice* or the SmartThings app**

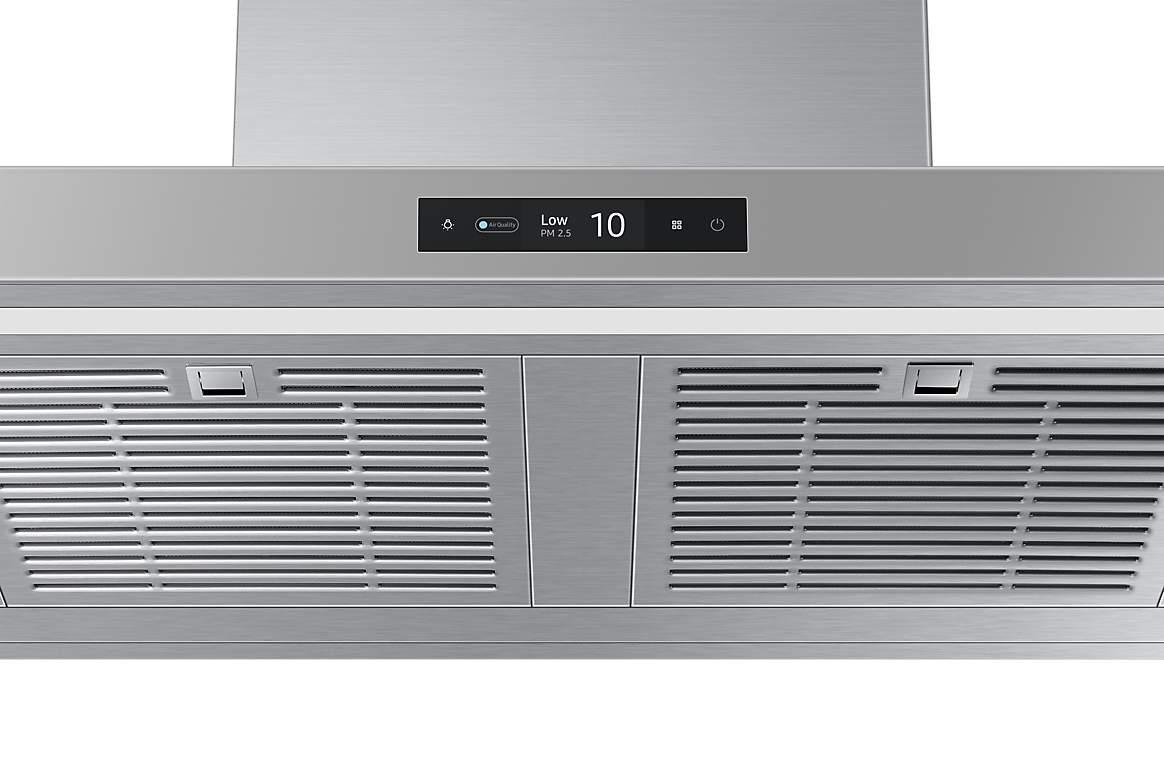

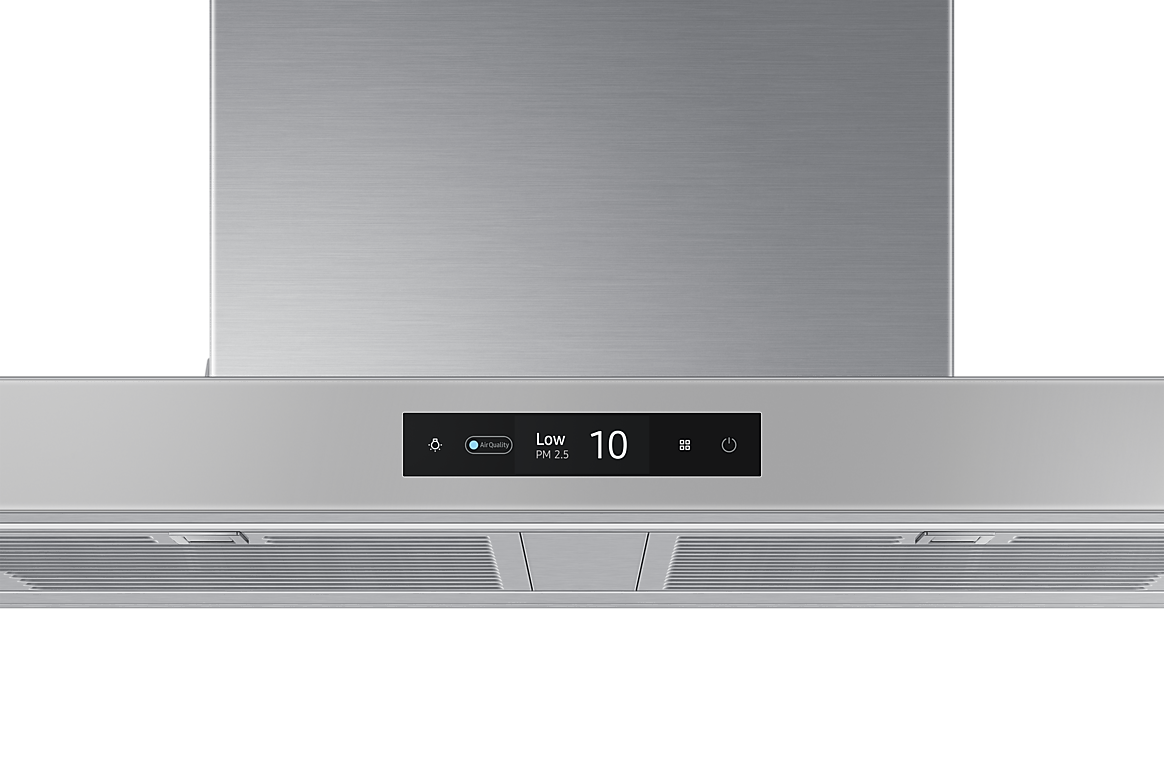

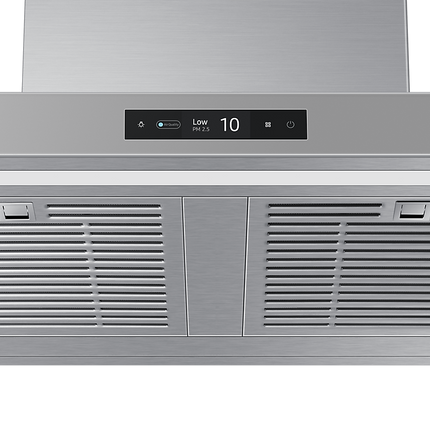

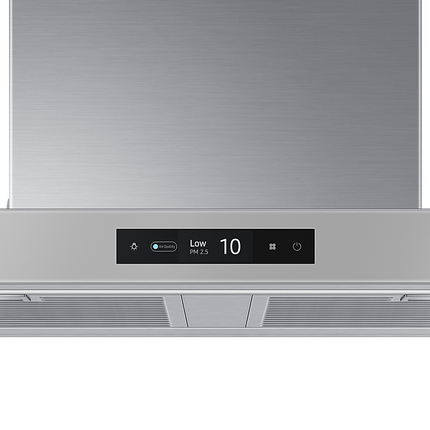

Smart Ventilation mode* monitors the air pollution 24 hours a day using data from the Triple Air Sensor. The LCD display indicates the air quality, if it is poor the hood will automatically start to work in Low mode and then turns off when the pollution level reduces. 4
Smart mode* adjusts the hood’s ventilation power to suit the air pollution level. If the air quality is poor it works in High mode to refresh the air rapidly. When it improves it reduces its speed. 5
Specifications
Overview
-
Materials/Finishes: Clean Gray
-
Model Type Install: Chimney
-
Size: 30 Inches
-
Features: Touch
Materials/Finishes
-
Exterior: Clean Gray
-
Installation Type: Chimney
Features
-
Control Type: Touch
-
Size: 30 Inches
-
Display Colour: White
-
Number of Motors/Fans: 1/1
-
Number of Extraction Speeds: 5
-
Max Extraction(CFM): 390
-
Sound Power: 62 dBA
-
Sound Power (Boost): 69 dBA
-
Hood Lighting: LED - 4 W (2 EA)
-

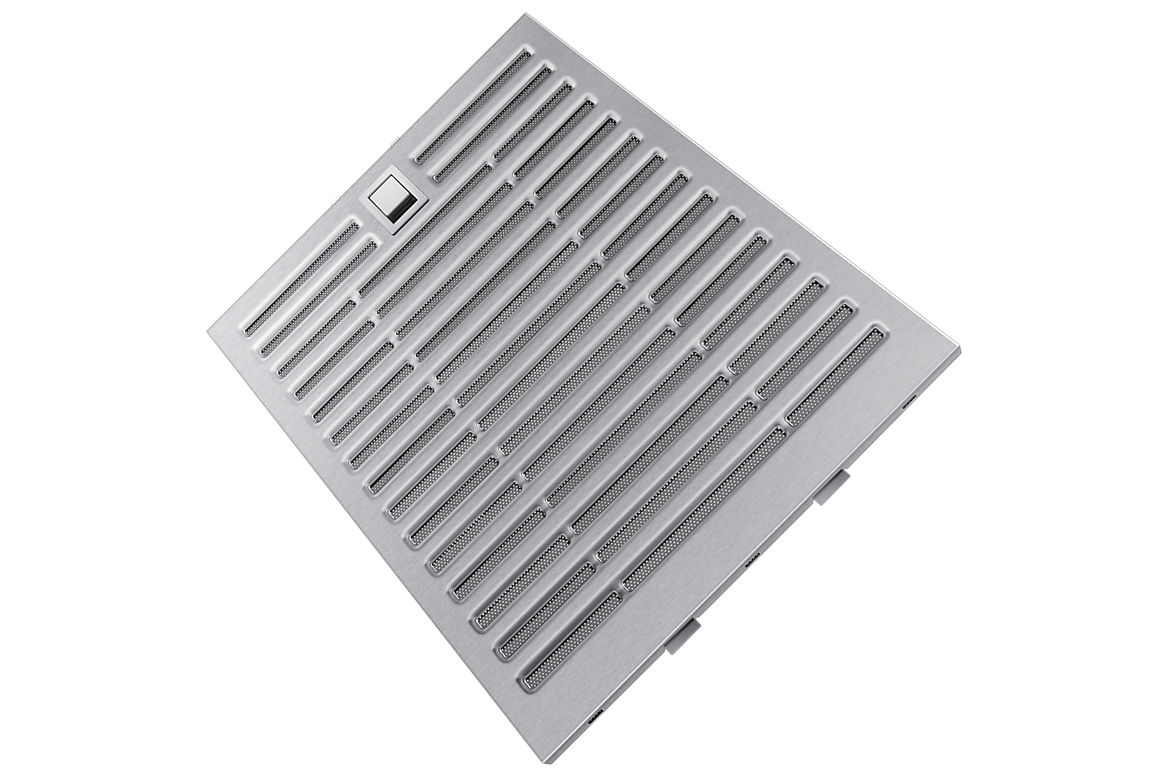

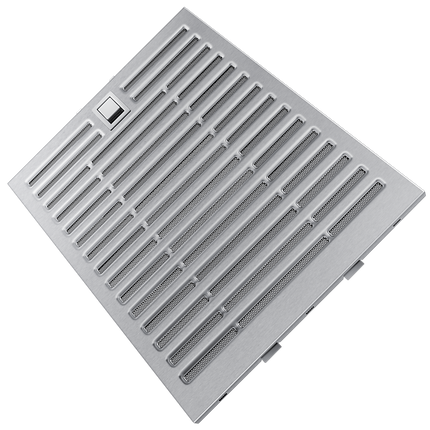

Hood Filter: STSS Filter
-
Extraction Type: Ducting or Recirculating
Air Quality Control
-
Air Quality Sensor: Triple Air Sensor
Installation Environment
-
Power Connection: Hard Wire
Weights/Dimensions
-

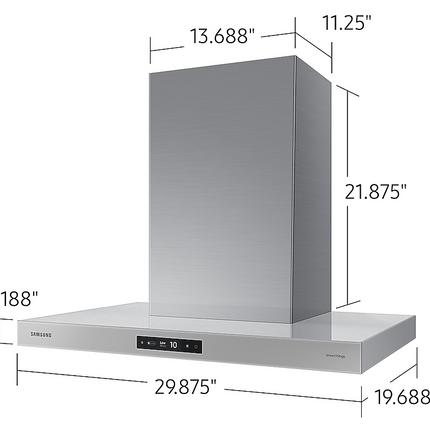

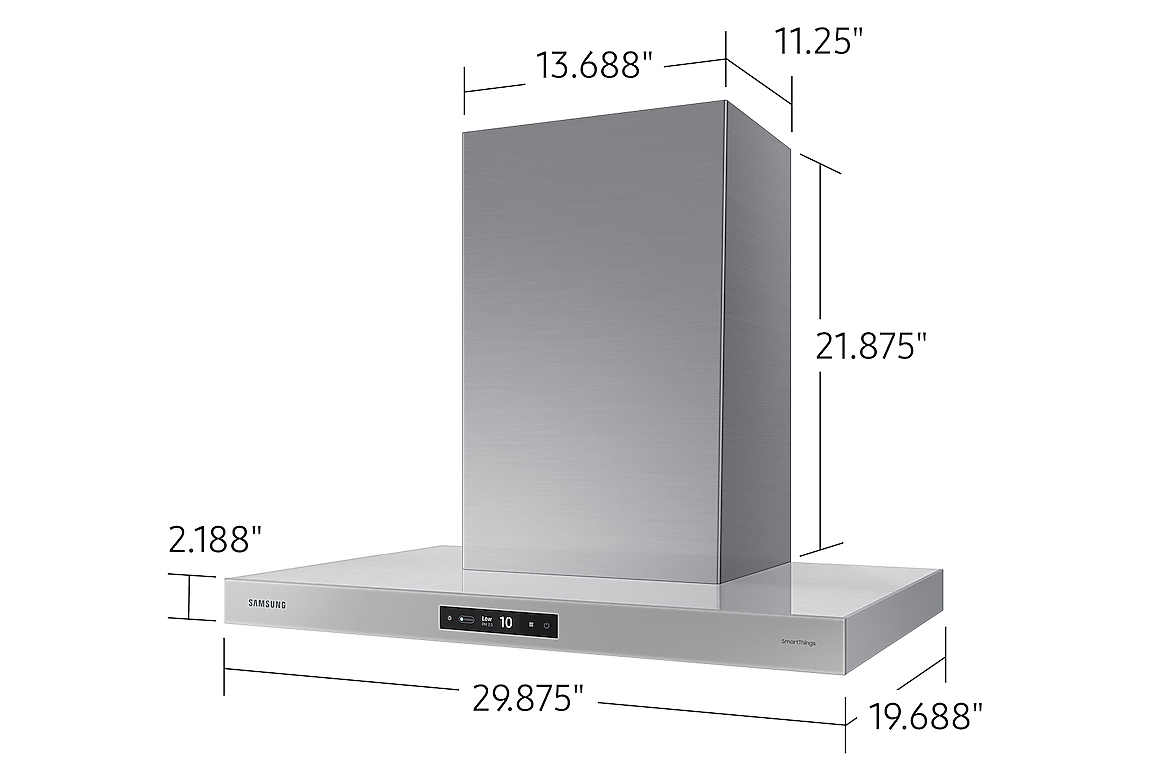

Net Size (W x H x D) (mm): 758 x 646 ~1066 x 500
-
Package Dimension (WxHxD)(mm): 843 x 655 x 500 mm
-
Loading Quantity (20/40ft): 72 / 168, 224 (40/HQ)
-
Net Weight (kg): 16.2
-
Shipping Weight: 27
Additional Purchase Accessories
-
Recirculation Kit: Yes
-
Hood Extension Kit: Yes
Smart
Reference Codes
SKU: NK30CB700WCGAA
